1000 HLAU HLAU HLAU HLAU HLAU TWJ NKAUJ TSHUAB Moulding Tshuab

Model:KGB1000L- IBC

Muaj lub zog thiab kev ruaj khov ntawm kgb1000L cov tso tsheb hlau luam yeeb ua kom zoo nkauj dua 5, tons kom txo qis kev co thiab kev xa khoom. Daim kab pheeb ces kaum ob txoj hlua khi thiab feem ntau peb-lub tog raj kheej clamping xyuas kom muaj kev faib tawm thoob plaws cov pwm, txhim kho cov khoom lag luam.

Ntim: 1000lQhov hnyav: 55t

Xa lus nug

Product Description Specification Application

Qhov no 1000 hlwv ib tso tsheb hlau luam ib txwm tshuab tshuab moulding tshuab sib xyaw ua ke tshuab cov ntsiab lus thev naus laus zis rau cov nqi txo thiab txhim kho cov khoom siv ruaj khov. Qhov zoo tshaj plaws rau kev tsim cov khoom muaj peev xwm loj, suav nrog cov dej tso tawm rau ib lub tsheb thauj khoom siv lub tsheb lub roj, cov roj tsheb loj loj, thiab ntau dua. Tiv tauj peb rau hnub no rau cov lus sau ua ke thiab tshawb peb lub taub lim dej sib tw ua kom muaj dej num moulding tshuab tus nqi.

Nta thiab Qhov Zoo

Cov khoom siv tag nrho tuaj yeem ncav cuag ntau dua 500 tons, txo txiaj ntsig kev co thiab tshuab kev hloov pauv, thiab kev txhim kho cov khoom tsim tsim tau thiab ruaj khov.
● Xuas ob npaug khi ob zaug khi Rods thiab Central Peb-Pwm Clamping, tus qauv yog cov yaum kom yooj yim thiab tsis yooj yim deformed
● Ntau lawm txheej ntau lawm txo cov nqi tsim khoom thiab txhim kho cov khoom lag luam ruaj khov
Tsim nyog rau kev tsim cov khoom lag luam ntawm cov khoom lag luam loj xws li dej yees, tso tsheb hlau luam, ntim khoom, thiab lwm yam.

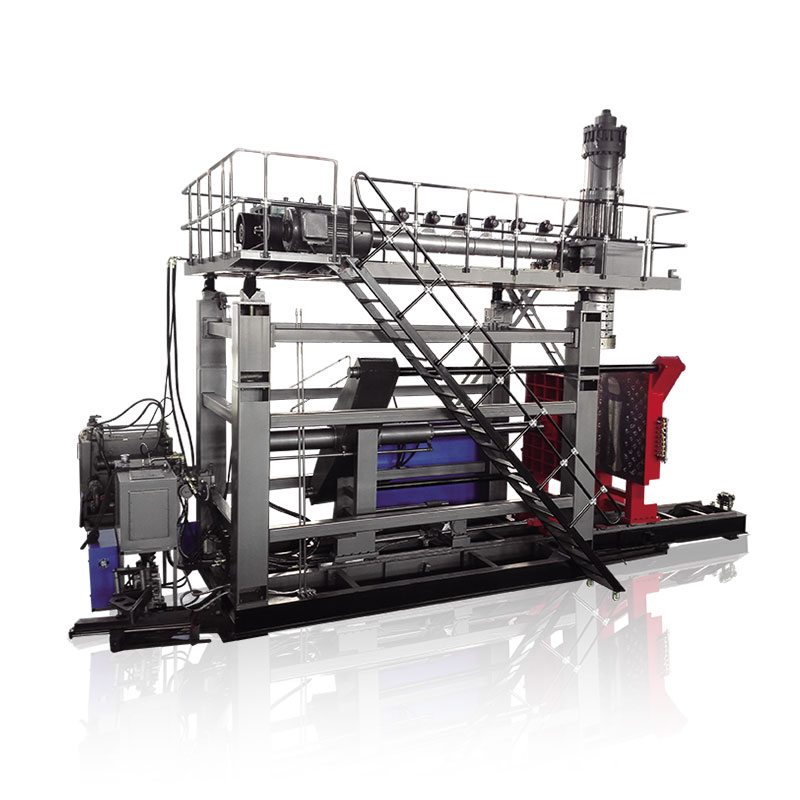

1000L IBC water tanks accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGS1000L-IBC
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	150 L
3	Machine Dimension(L×W×H)	9.5 M x 5.1 M x 6.5 M
4	Machine weight	55 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1800 MM x 1600 MM
3	Platen opening stroke	1150 MM - 2700 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1600 MM x 1500 MM
6	Mold thickness	1200 MM - 1400 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	2 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW - 150 KW
Extruder unit
1	Screw diameter	100 MM x 2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	45 L
5	(PE)Accumulator weight	33 KG
