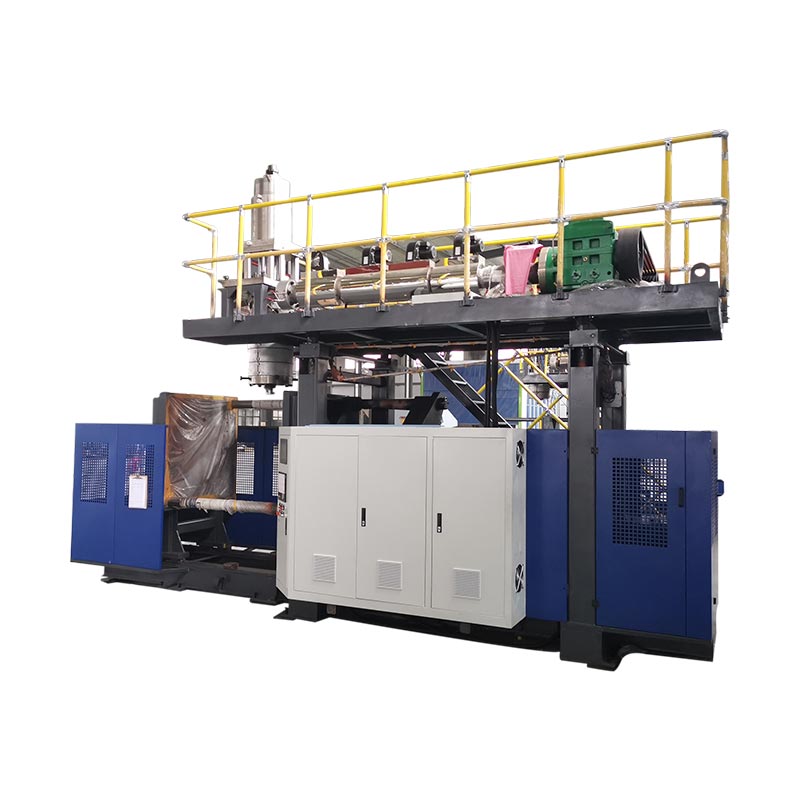

160L | tshuab tshuab ntxhua khaub ncaws

Model:KGB110A

Qhov no 160l | tshuab moulding tshuab los ntawm tus neeg xa khoom, ntaus nkauj rub tawm synchronous clining pwm, muab kev ua haujlwm siab thiab ua haujlwm siab. Nruab nrog cov hydralic servo system rau cov lus teb sai thiab txuag hluav taws xob, lub zog no ua rau muaj ntau lub ntim me me mus loj dua.

Ntim: 120LQhov hnyav: 22T

Xa lus nug

Product Description Specification Application

Tus qauv KGB110a qauv, ib tug leadulator lub taub hau tshuab moulding tshuab, suav nrog Moog 100 thickness maub los, neeg hlau caj npab, thiab hauv qab tshuab System, txhim kho kev tsim khoom thiab cov khoom lag luam zoo. Cov Kingle Zoo Siab 160L | Tshuab Moulding Tshuab yog qhov zoo tagnrho rau ntau yam kev siv, suav nrog cov tshuaj nruas nruas tshuab moulding tshuab kev daws teeb meem, yas extrusion tshuab moulding tshuab ua txheej txheem, ntab Tshuab Moulding Tshuab Kev Siv, thiab Cov Khoom Siv Ntim Cov Khaub Ncaws, Cov Khoom Ua Si Tsheb, Cov Khoom Ua Si Tshuab, Cov Tshuab Moulding Tshuab, Teeb Pib, Cov ciaj teeb tsheb loj, cov tshuaj rooj tog, cov rooj zaum ntab, thiab cov rooj.

Nta thiab Qhov Zoo

Kev khawb qhov tob rau hauv cov thev naus laus zis tuaj yeem muab cov txheej txheem siab-lub zog khoom siv rau cov neeg siv khoom uas tau them tus nqi tsim nyog; Kuj tseem tuaj yeem txua ob-txheej lossis ntau txheej txheem sib xyaw ua ke nrog cov khoom siv tes ua tau zoo.
Empower cov haujlwm tseem ceeb ntawm 110A tshuab moulding tshuab nrog lub zog ua kom ruaj thiab txhim khu kev qha hydraulic fais fab system. Nrov must thiab ruaj khov hloov mus rau agile thiab muaj zog ua haujlwm thiab muaj txiaj ntsig zoo ntawm cov khoom siv ntev thiab muaj txiaj ntsig ib txwm muaj cov khoom lag luam zoo thiab ua rau muaj cov khoom lag luam zoo.

Specifications

serial number	Material PE、PP、ABS...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS...	Machine model:KGB110A
Specifications
1	Max container capacity	120 L
2	Output(dry Cycle)	320 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M x 5.2 M
4	Machine weight	22T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1100 MM×1400 MM
3	Platen opening stroke	600 MM - 1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	1000 MMx1400 MM
6	Mold thickness	610 MM -750 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	200 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	52 KW -60 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	160 Kg/hr-200 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	75 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	35 KW
3	Max die-pin diameter	450(600) MM
4	Accumulator capacity	12(20) L
5	(PE)Accumulator weight	9(15) KG
