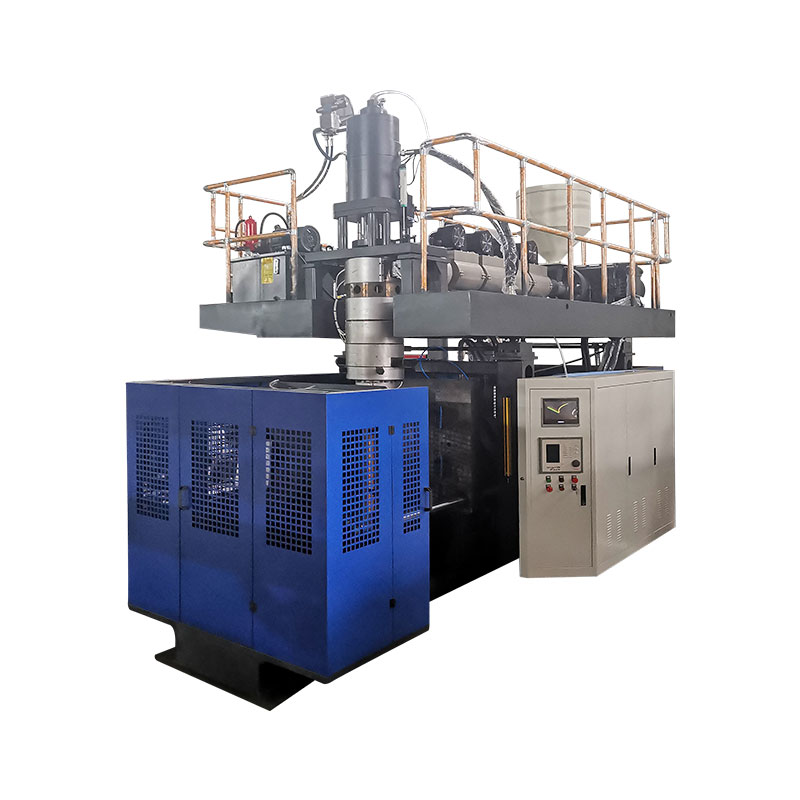

60L nres tshuab tshuab moulding

Model:KGB90A

Qhov no tsau qhib thiab kaw tshuab moulding tshuab, featuring ob chav rub synchronous clining moulding pwm, muab kev ua haujlwm siab thiab ua haujlwm siab. Nruab nrog cov hydralic servo system rau cov lus teb sai thiab txuag tshuab moulding tshuab zoo li hauv kev tsim ntau yam khoom lag luam, los ntawm cov ntim me me mus loj dua.

Ntim: 60lQhov hnyav: 14T

Xa lus nug

Product Description Specification Application

Tus txheej txheem KGB90A qauv, ib qho kev ua yeeb yam tshuab tshuab tshuab, suav nrog lub ntsej muag zoo 100 tuab thiab hauv qab tshuab, txhim kho cov khoom lag luam thiab cov khoom lag luam zoo. Qhov no 60l autaws tshuab moulding tshuab yog zoo tagnrho rau ntau yam kev siv tshuaj ntxuav tawm, khoom siv roj hmab, khoom siv tsheb, cov cuab yeej pib, thiab cov khoom lag luam tawm.

Nta thiab Qhov Zoo

Tus qauv no yog qhov chaw nruab tsau thiab kaw, siv ob npaug rau ob npaug pob synchronous pwm kaw me ntsis, thiab cov roj kheej txhais lus siab clamping
● Cia lub tog raj kheej tuag lub taub hau series
● Ntau tshaj plaws ntim 60l
Tsim kom haum rau tshuaj ntim ntim ntim, cov khoom ua si loj, ABS tsheb Tail, thiab lwm yam.
Siv cov thev naus laus zis, pwm clamping systems, loj clamping clamping nrawm, luv nqi khoom voj voog

60L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Fixed open- closing type Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB90A
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

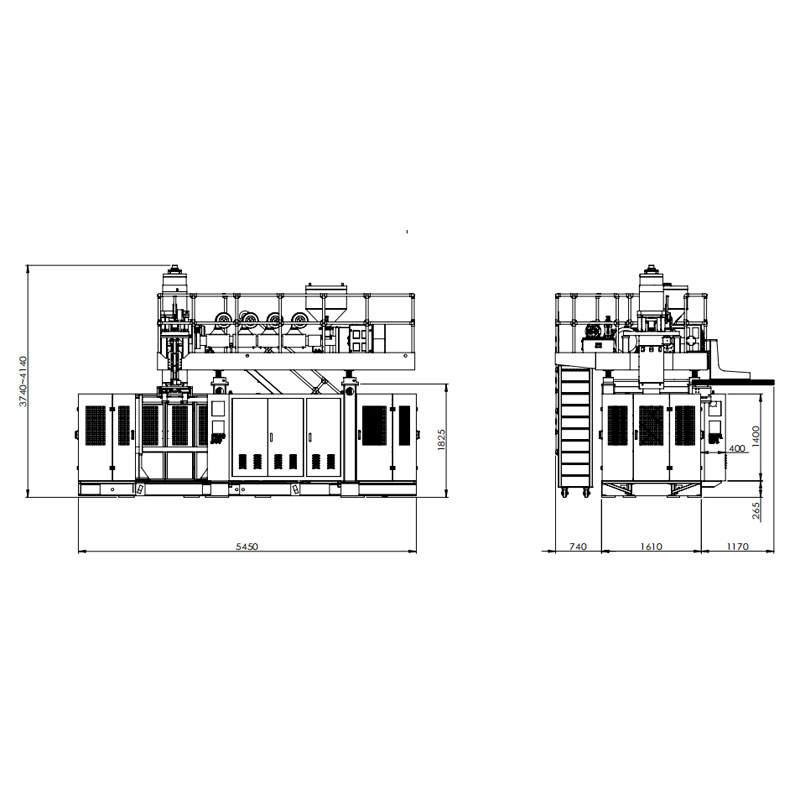

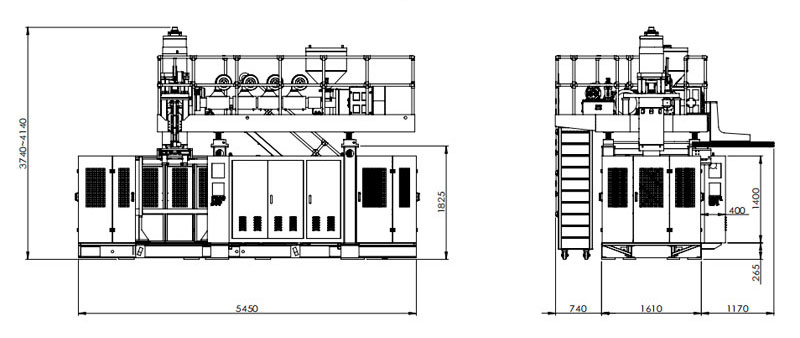

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	14 T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen opening stroke	450 MM-1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM x 980 MM
6	Mold thickness	460 MM-550 MM
Power
1	Servo oil pump motor power	18.5 KW
2	Servopump displacement	150 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW-45 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr-160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fan power	0.5 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Max die-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
