120l | TSHUAB MOULDING TSHUAB

Model:KGB100B

Kev paub ua tau zoo ntawm qhov tsau qhib thiab kaw 120l autring tshuab moulding tshuab nrog ob chav rub tawm clining thiab roj lub tog raj kheej scriping thiab roj bearing siab kom xauv cov pwm. Lub hydroic servo system ua kom cov lus teb ceev thiab txuag hluav taws xob, kev tsim tawm zoo dua.

Ntim: 120LQhov hnyav: 18T

Xa lus nug

Product Description

Tus qauv Kgb100B qauv, tus qauv siab tshaj plaws taub hau tshuab moulding tshuab, suav nrog Moog 100 thickness maub los, neeg hlau caj npab, thiab hauv qab Tshuab kaw, txhim kho kev tsim khoom thiab cov khoom lag luam zoo. Qhov no 120l | tshuab moulding tshuab yog Haum rau ntau qhov kev siv, suav nrog cov tshuaj nruas nruas tshuab moulding Tshuab daws teeb meem, ntab tshuab moulding tshuab ua cov txheej txheem, thiab ntau lawm Ntawm cov tshuaj chemical ntim kaw, tso tsheb hlau luam, ua khoom ua si, pib qhov chaw, tsheb Teeb Meem, Tshuaj Rooj Tog, Rooj Tshuab Moulding Tshuab Pleev, Ntab buoys, cov rooj zaum, thiab cov rooj. Nrog lub tshuab moulding ntau tshaj plaws ntim ntawm 120L, nws caters rau ntau qhov kev xav tau ntawm cov kev xav tau, los ntawm cov ntim me me kom cov ntawv thov loj dua.

Cov lus qhia

Muaj pes tsawg tus lej	Cov khoom siv PE, PP, ABS ...	Pwm kaw cov roj kheej kheej (tib tog kheej kheej)
Muaj pes tsawg tus lej	Cov khoom siv PE, PP, ABS ...	TSHUAB qauv: KGB100B
Cov lus qhia
1	Max Ntim Peev Xwm	120L
2	Tso Tawm (Lub voj voog qhuav)	320 PC / hr

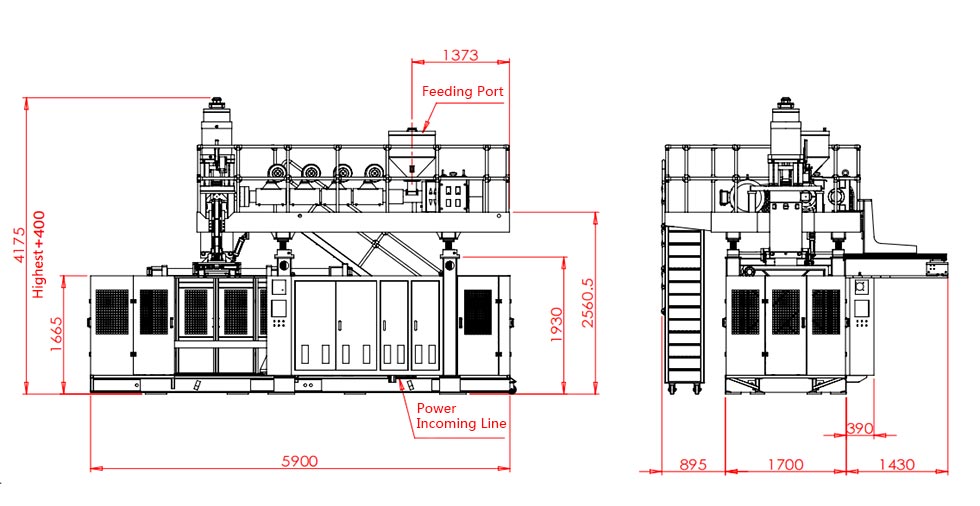

3	Tshuab Dimension (L × W × h)	5.9 m 3. 3. m x 4.6 m
4	Tshuab qhov hnyav	18 t
Clamping chav tsev
1	Clamping yuam	440 KN
2	Pwm Platen Loj (W × h)	1200 hli X1200 hli
3	Daim Hlau Qhib Stroke	500 mm-1400 hli
4	Platen Tsiv stroke	600 hli
5	Max Pwm Loj (W × h)	920 MMX1200 hli
6	Pwm Thickness	510 hli-600 hli
Hwjchim
1	SERVO ROJ MIS MIS MOOG Lub Zog Muaj Zog	25 kw
2	Servopumpump tsiv	200 l / min
3	Tshuab xauv	0.8 MPa
4	Kev Siv Cua Cua	1.8 m² / mi
5	Cua txias dej siab	0.3 MPa
6	Kev Siv Dej	120 l / min
7	Qhov nruab nrab hluav taws xob siv	52-60 kw
Extruder Chav
1	Ntsia Hlau taub	100 hli
2	Ntsia hlau L / d piv	24 L / D
3	Melting capacit rau HDPE	160 kg / hr -200 kg / hr
4	Cov naj npawb ntawm thaj chaw ua cua sov	4 cheeb tsam
5	NTSIA HLUB cua kub	22.4 KW
6	Ntsia hlau ntxuam	0.6 kw
7	Extruder Lub Zog Muaj Zog	55 kw
Tuag Lub Taub Hau
1	Cov naj npawb ntawm cov hluav taws xob	5 Cheeb Tsam
2	Cua sov fais fab	35 kw
3	Max tuag-tus kab uas hla	450 hli
4	Accumulator muaj peev xwm	12 (20) l
5	(PE) Tsoos Kev Nyuaj Siab	9 (15) kg

Nta thiab Qhov Zoo

Tsau pwm qhib thiab kaw mechanism: nruab nrog ob npaug qwj qws synchronous pwm kaw system, ua kom cov pwm sib luag thiab ruaj khov. Cov roj lub tog raj kheej ncaj qha siv cov txiaj ntsig rau kev txhim khu kev qha pwm.
Cia lub tog raj kheej tuag lub taub hau series: tsim rau kev sib thooj txaus thiab muaj txiaj ntsig zoo khoom tsim.
Lub peev xwm loj: Txhawb cov khoom siab tshaj plaws ntim ntawm 120L, ua rau nws zoo tagnrho rau kev tsim cov thawv loj thiab chaw muaj khoom loj.
Hydraulic Servo System: Nti GATION HYDRAULIC Servo tswj, xa cov kev ua haujlwm ceev ceev, thiab txo cov nqi ua haujlwm.

Chaw thov

Max 120L Cov Khoom Siv Hluav Taws Xob / Pib Qhov Chaw / Cov Tsheb Loj / Ntab / Cov Khoom Ua Si / Rooj Tog Zaum

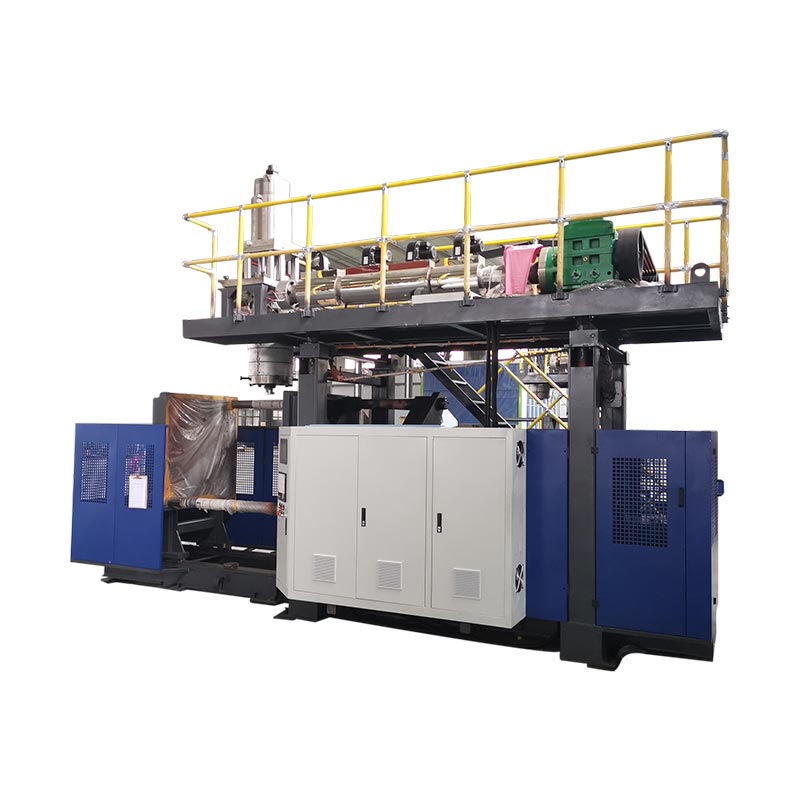

120L accumulate blow molding machine

Cov FAQ

1. Ntau npaum li cas ntawm kev sib sau ua qauv tshuab moulding tshuab?

Vim yog cov khoom sib txawv, lub tshuab tuaj yeem muaj cov cuab yeej siv hlau / hauv qab tshuab, thiab lwm yam. Thov qhia koj cov tshuaj rau kev siv.

2. Kuv tuaj yeem xaiv tus qauv zoo li cas?

Txog li ib txwm fwj / barrels thiab lwm yam khoom, tsuas yog paub meej lub max ntim ntawm lub tshuab. Rau lwm cov khoom tshwj xeeb, xav tau kev txiav txim siab platen / extrusion / fais fab thiab lwm yam kom tau daws cov tshuaj uas haum.

3. Piv nrog lwm hom, vim li cas kuv xaiv Kinglle tshuab moulding tshuab?

Kinged koom rau hauv tshuab moulding Txij xyoo 2008 los txhawb cov neeg siv khoom tshiab kom sai sai tsim cov kab ntau lawm thiab ua tiav cov peev txheej. Nyob rau 20 xyoo dhau los, peb tau tsim dav hlau txuas ntxiv thiab tsim cov qauv ntawm nws tus kheej, ua tiav ruaj khov thiab kev tsim khoom siv tau.

4. Koj tau lees paub ntawm lub tshuab zoo?

Peb yuav siv cov tshuab ntsuas siab ua ntej xa khoom kom paub tseeb tias cov khoom tsim tau ruaj khov. Thiab muab 1-xyoo lav vim tias lub tshuab tuaj txog koj lub Hoobkas. Yog tias xav tau, kuj tuaj yeem muab daim ntawv pov thawj SGS.

5. Koj puas muab kev cob qhia kev saib xyuas kev saib xyuas lossis kev ua txhaum kev txhaum?

Yog lawm, peb tsis tsuas yog muaj cov ntaub ntawv txij nkawm tab sis kuj muaj cov ntaub ntawv tswv cuab / yeeb yaj duab los daws cov teeb meem.
Lub khoos kas TSHUAB muaj lub tswb ceeb toom, uas tuaj yeem pab daws teeb meem daws teeb meem

6. Koj tau txais kev pab cuam tom qab twg?

Peb tuaj yeem xa cov kws ua choj rau koj lub hoobkas los pab koj nruab thiab tsheb ciav hlau, lub ntsiab lus tseem ceeb tuaj nrog lub sijhawm 1-2 xyoo tuaj yeem hloov dawb hauv ib xyoos.
