250L | TSHUAB MOULDING TSHUAB

Model:KGB120E

Qhov no tsau qhib thiab kaw tshuab moulding tshuab, featuring ob chav rub synchronous clining moulding pwm, muab kev ua haujlwm siab thiab ua haujlwm siab. Nruab nrog cov hydralic servo system rau cov lus teb sai thiab txuag tshuab tshuab hluav taws xob zoo li cov khoom lag luam, los ntawm cov ntim me me mus loj dua.

Ntim: 250LQhov hnyav: 28t

Xa lus nug

Product Description

Tus qauv KGB120E, qauv ua yeeb yam lub taub hau tshuab moulding tshuab, suav nrog Moog 100 thickness maub los, neeg hlau caj npab, thiab hauv qab tshuab System, txhim kho kev tsim khoom thiab cov khoom lag luam zoo. Qhov no ntau yam 250l | tshuab moulding tshuab yog zoo tagnrho Rau ntau daim ntawv thov, suav nrog cov tshuaj nruas lub tshuab tshuab moulding tshuab Kev daws teeb meem, yas pallets tshuab moulding tshuab ua cov txheej txheem, dej yas TANK TSHUAB Moulding Tshuab Kev Siv, Thiab Cov Ntau Lawm Ntawm 200-220l Muab cov thoob khib nyiab, tso tsheb hlau luam tsheb, cov chaw tsheb kauj vab, teeb meem tsheb, cov tshuaj Cov rooj tog, nplaim ris, rooj zaum, cov rooj, khoom ntim, nkoj, thiab lwm yam.

Cov lus qhia

Muaj pes tsawg tus lej	Cov khoom siv PE, PP, ABS ...	Pwm kaw cov roj kheej kheej (tib tog kheej kheej)
Muaj pes tsawg tus lej	Cov khoom siv PE, PP, ABS ...	TSHUAB qauv: KGB120E
Cov lus qhia
1	Max Ntim Peev Xwm	250 l
2	Tso Tawm (Lub voj voog qhuav)	300 PC / hr

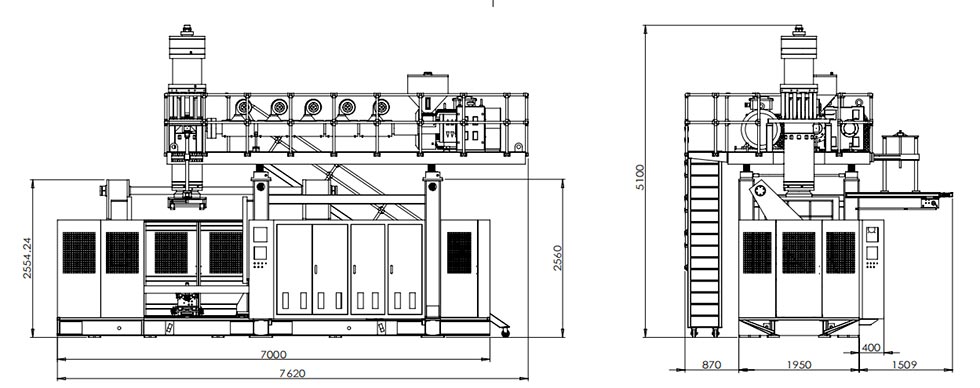

3	Tshuab Dimension (L × W × h)	7.6 m x 4.3 m x5.5 m
4	Tshuab qhov hnyav	28 T
Clamping chav tsev
1	Clamping yuam	800 KN-1200 KN
2	Pwm Platen Loj (W × h)	1300 hli X 1400mm
3	Daim Hlau Qhib Stroke	800 hli-1800 hli
4	Platen Tsiv stroke	700 hli
5	Max Pwm Loj (W × h)	1100 hli X 1700 HLI
6	Pwm Thickness	810 hli - 900 hli
Hwjchim
1	SERVO ROJ MIS MIS MOOG Lub Zog Muaj Zog	37 kw
2	Servopumpump tsiv	250 l / min
3	Tshuab xauv	0.8 MPa
4	Kev Siv Cua Cua	1.8 mp / min
5	Cua txias dej siab	0.3 MPa
6	Kev Siv Dej	120 l / min
7	Qhov nruab nrab hluav taws xob siv	80 kw -90 kw
Extruder Chav
1	Ntsia Hlau taub	120 hli
2	Ntsia hlau L / d piv	25 L / D
3	HDPEMELING Capit rau HDPE	250 KG / HR-320 KG / HR
4	Cov naj npawb ntawm thaj chaw ua cua sov	6 cheeb tsam
5	NTSIA HLUB cua kub	30.2 kW
6	Ntsia hlau ntxuam	0.6 kw
7	Extruder Lub Zog Muaj Zog	90 (110) kw
Tuag Lub Taub Hau
1	Cov naj npawb ntawm cov hluav taws xob	5 Cheeb Tsam
2	Cua sov fais fab	38.8 kw
3	Max tuag-tus kab uas hla	600 (700) hli
4	Accumulator muaj peev xwm	20 (25) l
5	(PE) Tsoos Kev Nyuaj Siab	15 (18) kg

Nta thiab Qhov Zoo

Siv rau kev tsim khoom lag luam hauv ntau yam kev lag luam. Seb nws loj muaj peev xwm loj corrosion-resistant cov thawv hauv kev lag luam tshuaj lom neeg nrog cov khoom lag luam tsis zoo rau cov khoom noj txhua hnub, nws tuaj yeem raug tswj hwm kom tau ntsib ntau yam kev lag luam.
Cov txheej txheem pub rau cov neeg noj khoom haus ua cov thev naus laus zis thiab yog ua kom zoo raws cov yam ntxwv ntawm lub 120 no tshuab moulding tshuab. Qhov tseeb tswj hwm tus nqi txaus thiab faib cov khoom lag luam raw ua kom ntseeg tau lub zog ntawm cov khoom lag luam, thiab tshem tawm qhov tsis xws luag tshwm sim los ntawm kev pub mis tsis sib xws.

Chaw thov

Max 220l ob-ntiv nplhaib qhib sab saum toj lossis kaw sab saum toj tshuaj ntxuav tais diav / nruas; Auto Qhov Chaw / Cov Tsheb Loj / Ntab / Cov Khoom Ua Si / Rooj Tog / Pallet

250L accumulate blow molding machine
