30l | tshuab tshuab moulding tshuab

Model:KGB80A

Qhov no 30l | tshuab moulding tshuab Nta Rollust ob chav rub synchronous clining thiab roj lub tog raj kheej ncaj ncaj kom xauv cov haujlwm kom zoo. Nruab nrog cov hydralic servo system rau cov lus teb sai thiab txuag hluav taws xob ntau rau ntau qhov chaw loj dua 20 litre tshuab moulding tshuab thov.

Ntim: 30LQhov hnyav: 12t

Xa lus nug

Product Description

Tus qauv KGB80A tus qauv suav nrog cov moog 100 thickness maub los, cov khoom siv hlau, nrog rau cov kuab tshuaj moulding tshuab thiab cov tshuaj tua hluav taws tshuab tshuab thiab cov tshuaj tua hluav taws tshuab moulding tshuab daws. Nws txhawb nqa ib qho thiab ntau txheej kev xaiv, nrog rau auto sealing thiab saib sawb cov cuab yeej rau kev txhim kho kev ua haujlwm. Qhov no 30l | tshuab moulding tshuab yog qhov zoo tagnrho rau cov ntim tshuaj siv, cov thawv dej khov, tshuaj tso pa tawm, thiab ntau dua.

Cov lus qhia

Muaj pes tsawg tus lej	Cov khoom siv PE, PP, ABS ...	Tsau qhib hom Pwm kaw cov roj kheej kheej (tib tog kheej kheej)
Muaj pes tsawg tus lej	Cov khoom siv PE, PP, ABS ...	TSHUAB qauv: KGB80A
Cov lus qhia
1	Max Ntim Peev Xwm	L
2	Tso Tawm (Lub voj voog qhuav)	650 PC / hr
3	Tshuab Dimension (L × W × h)	4.7 M X 3.5 M X 4 M
4	Tshuab qhov hnyav	12 t
Clamping chav tsev
1	Clamping yuam	215 kn
2	Pwm Platen Loj (W × h)	750 hli x 860 hli
3	Daim Hlau Qhib Stroke	350 hli-850 hli
4	Platen Tsiv stroke	370 hli
5	(×) Max Pwm Loj (W × h)	520 hli x 860 hli
6	Pwm Thickness	360 mm-420 hli
Hwjchim
1	SERVO ROJ MIS MIS MOOG Lub Zog Muaj Zog	11 kw
2	Servopumpump tsiv	80 L / min
3	Tshuab xauv	0.8 MPa
4	Kev Siv Cua Cua	0.7 m³ / min
5	Cua txias dej siab	0.3 MPa
6	Kev Siv Dej	70 L / min
7	Qhov nruab nrab hluav taws xob siv	27 KWS 37 CW
Extruder Chav
1	Ntsia Hlau taub	80 hli
2	Ntsia hlau L / d piv	24 L / D
3	Melting capacit rau HDPE	120 kg / hr-140 kg / hr
4	Cov naj npawb ntawm thaj chaw ua cua sov	4 cheeb tsam
5	NTSIA HLUB cua kub	15.6 kw
6	Ntsia hlau ntxuam	0.5 kw
7	Extruder Lub Zog Muaj Zog	37 kw
Tuag Lub Taub Hau
1	Cov naj npawb ntawm cov hluav taws xob	5 Cheeb Tsam
2	Cua sov fais fab	22.8 kw
3	Max tuag-tus kab uas hla	220 hli
4	Accumulator muaj peev xwm	5 l
5	(PE) Tsoos Kev Nyuaj Siab	3.75 kg

Nta thiab Qhov Zoo

Tus qauv no yog qhov chaw qhib thiab kaw cov pwm, siv ob npaug rau ob npaug synchronous zaj duab xis kaw kaw lub puab tsaig pwm
● Cia lub tog raj kheej tuag lub taub hau series
● Ntau tshaj plaws ntim 30L
Tsim nyog rau cov tshuaj ntim ntim cov khoom siv, cov khoom siv me me, cov khoom siv tsheb, cov thawv ntim khoom, cov thawv ntim khoom thiab cov tshuaj khib nyiab, thiab lwm yam.
● Cov yam ntxwv txawv yog tias nws raug tswj hwm los ntawm ib hydraulic servo system kom ua tiav ceev kev ua teb thiab muaj zog ua haujlwm.

Chaw thov

Tshuaj lom neeg ntim ntaub, cov khoom siv tau loj, pib cov kav dej, cov thawv ntim khoom, cov thawv ntim khoom thiab cov tshuaj khib nyiab, thiab lwm yam.

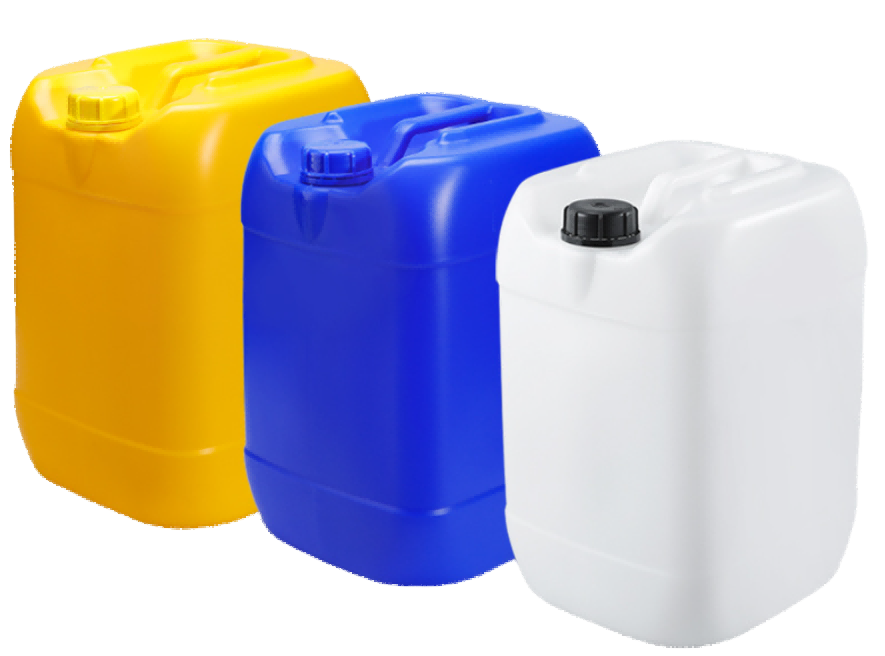

30L FULLICATING THOOB TAIS TSHUAB MOULDING TSHUAB DAIM

30L Chim Nyhav: 1.5-1.7 kg

Cov Khoom Siv: HDPE

Thickness: 2.5-3 hli

Cov neeg yuav khoom xav tau tshuab moulding tshuab los tsim 30L lub nruas ua noj nrog cov ntaub ntawv uas muaj kev cuam tshuam zoo heev, thiab durability thaum cia tsheb thauj mus los thiab khaws cia. Txhawm rau ua kom tau raws li cov kev xav tau no, lub kogrigle xaiv KGB80A Extrusion Tshuab Moulding tshuab, uas tau pom zoo rau kev ua haujlwm siab ntau thiab cov khoom lag luam zoo dua.
