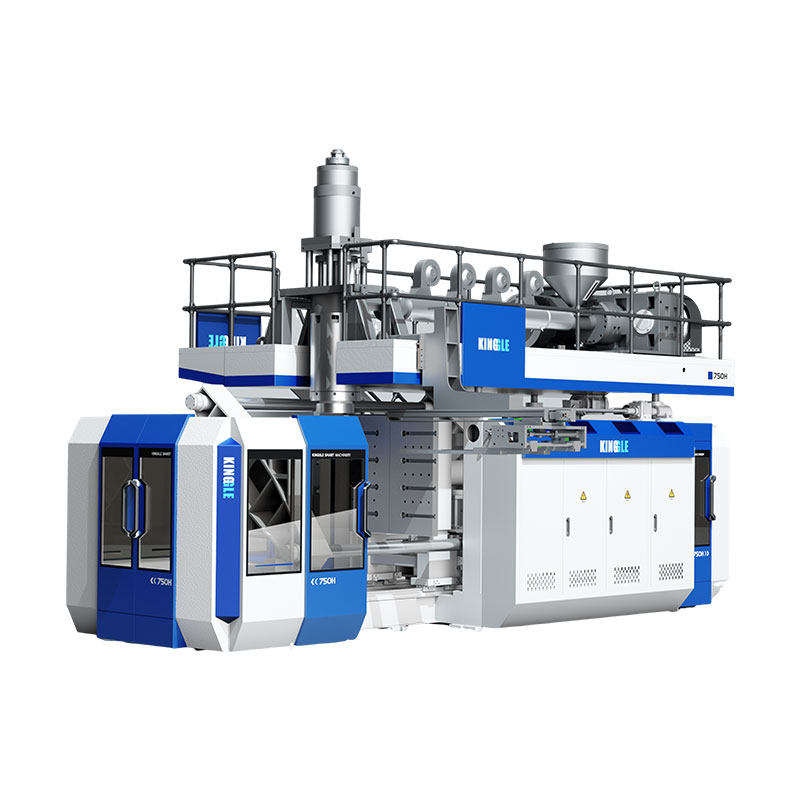

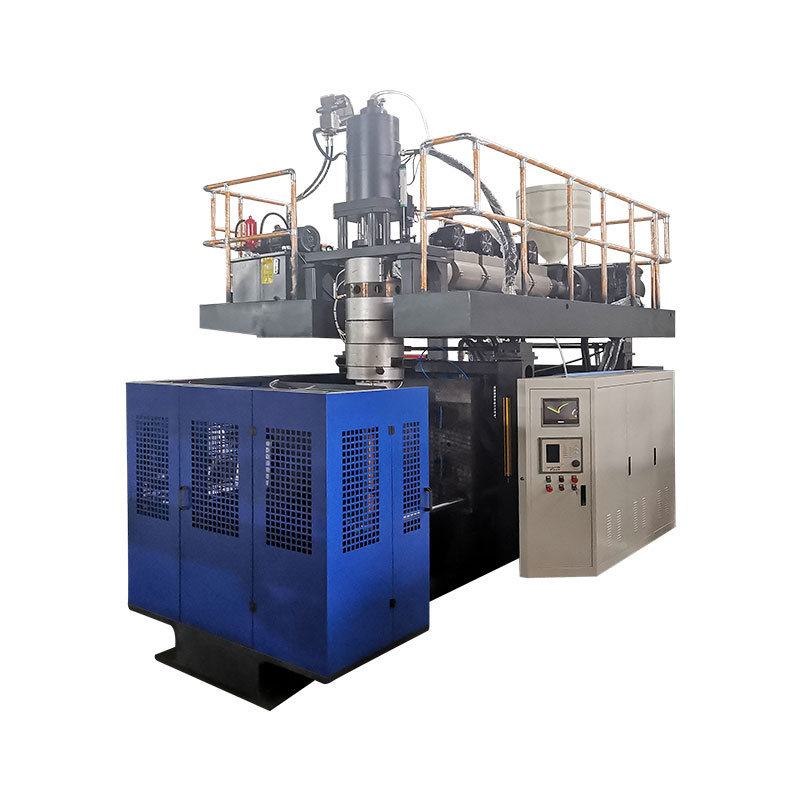

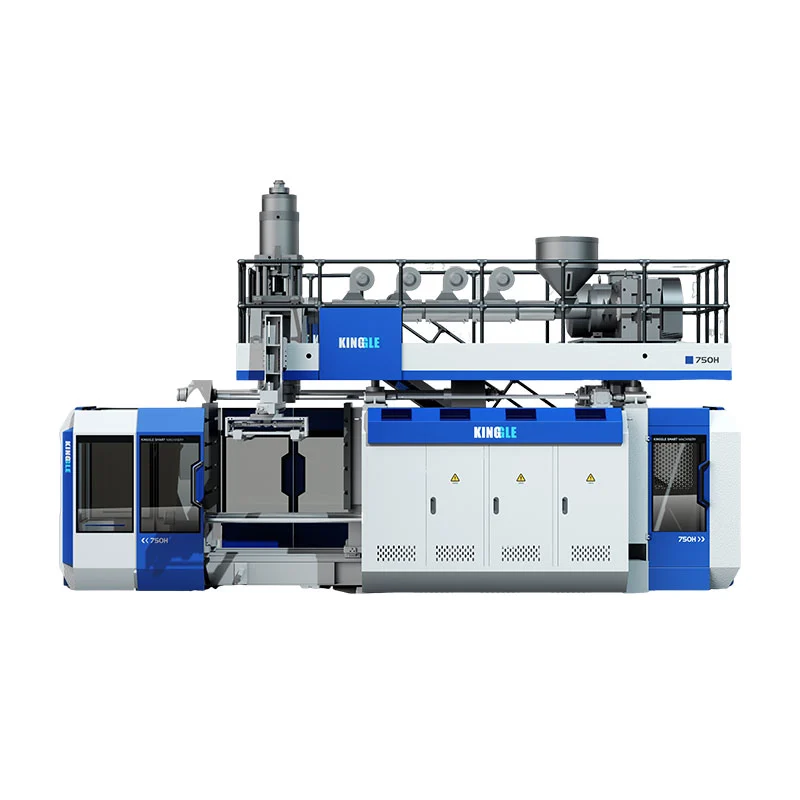

60L ACTRUMULATOR TSHUAB MOULDING TSHUAB

Model:KGB90AP

Rau kgb90ap, lub zog-txuag 60L accumulator tshuab moulding tshuab featuring ob txheej lossis ob chav xim molding tshuab thev naus laus zis. Nws yog tsim tshwj xeeb rau ob-txheej thiab ob-xim 60l tshuab moulding tshuab / 60L ntim khoom, nws ua kom muaj kev cia siab ntev thiab txo nqi kev txuag nyiaj.

Ntim: 60lQhov hnyav: 15T

Xa lus nug

Product Description Specification Application

KGB90AP 60L ACCTRATULATOR TSHUAB MOULDING TSHUAB muaj ob chav Extrusion System tuaj yeem haum ob txheej txheej txheej lossis ob chav xim ntau lawm yuav tsum txuas ntxiv khoom lag luam.
Suav nrog Moog 100 thickness maub los, neeg hlau caj npab, thiab hauv qab tshuab System, txhim kho kev tsim khoom thiab cov khoom lag luam zoo. Qhov no ntau yam tshuab yog qhov zoo tagnrho rau ntau yam kev siv, suav nrog cov kuab tais lim Tshuab daws teeb meem, yas extrusion tshuab moulding tshuab txheej txheem ,.

Nta thiab Qhov Zoo

Tus qauv no yog qhov chaw nruab tsau thiab kaw, siv ob npaug khi qws Synchronous Pwm Kaw Mechanism, thiab cov roj kheej kheej ncaj qha clamping
Cia Cia Lub Tshiv Ncauj Tuag Lub Taub Hau Series
Tshaj plaws ntim 70l
Tsim nyog Fotoolbox, thiab lwm yam.
Siv cov thev naus laus zis tshwj xeeb, puab yoog clamping systems, loj clamping Yuam kev, nrawm pwm clamping nrawm, cov khoom lag luam luv luv

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB90AP
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

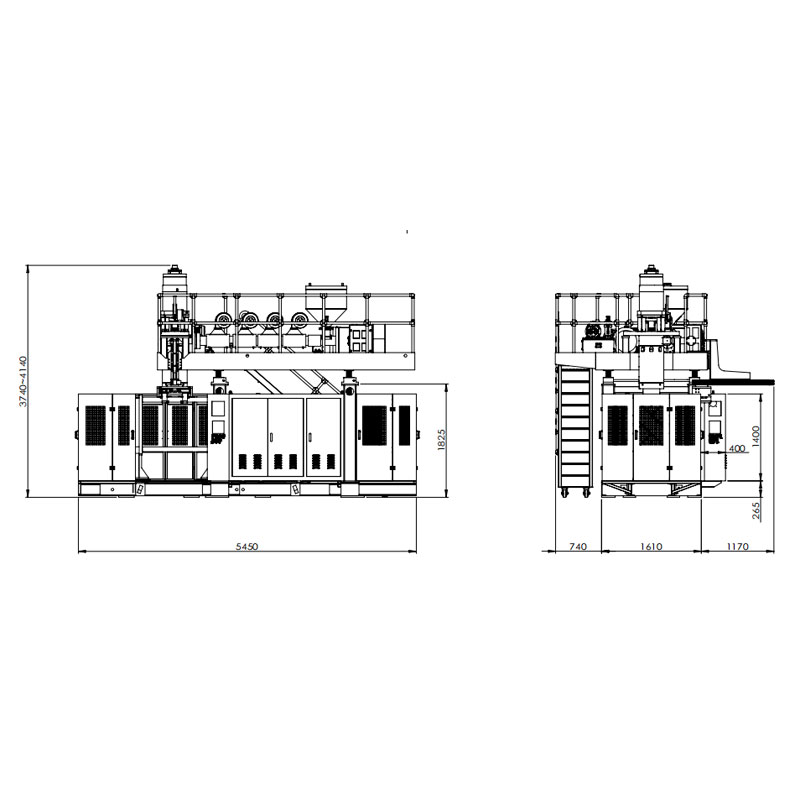

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	15T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen openingstroke	450 MM -1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM×980 MM
6	Mold thickness	460 MM -550 MM
Power
1	Servooil pump motor power	18.5 KW
2	Servo pump displacement	150 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW - 45 KW
Extruder unit
1	Screw diameter	2*70 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr - 160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fanpower	0.5 KW
7	Extruder motor power	2*22 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Maxdie-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
