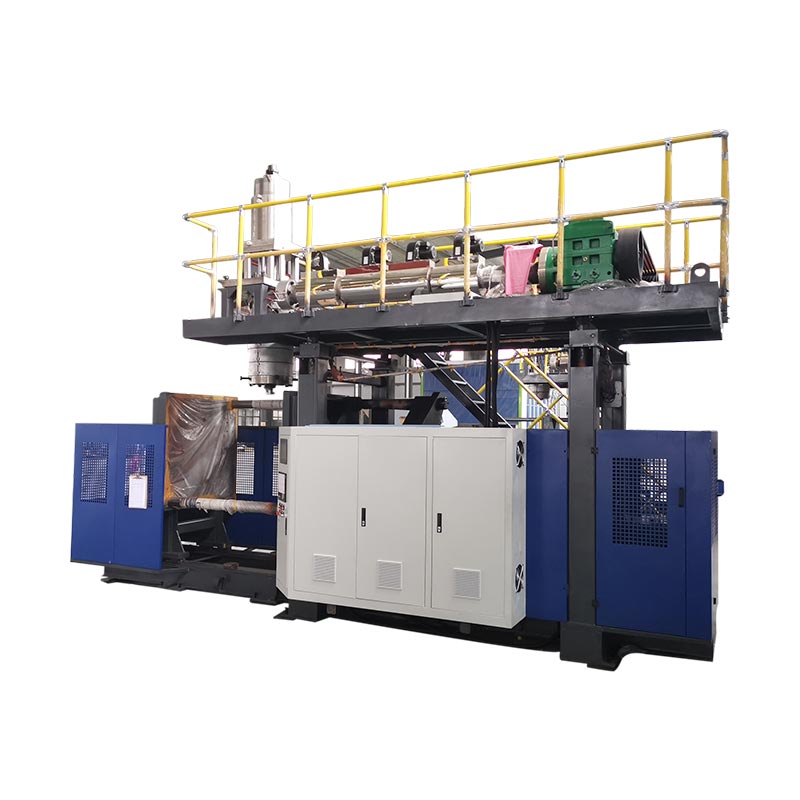

1210 pallet tshuab moulding tshuab

Model:KGS135A

Nyob rau hauv lub plawv ntawm koj cov kev xav tau ntau lawm, lub KGS135A yog qhov txhim khu kev qha 1210 Pallet tshuab moulding tshuab tshuab luam ntawv tshuab moulding tshuab. Nws los txhawb tsim cov khoom lag luam los ntawm kev tso tsheb hlau luam lossis 1000l dej rau ib teev nrog tus nqi tsis zoo hauv qab 0.3%. Tshwj Xeeb Rau Ntau Yam Khoom Siv Khoom Lag Luam

Ntim: 2000LQhov hnyav: 43t

Xa lus nug

Product Description

KGS135A yog Engineered Rau Precision Hauv 1210 Pallet Tshuab Moulding Tshuab, Cov yam ntxwv tseem ceeb suav nrog cov qauv tsim qauv rau ntau qhov loj me pallet sib xyaw, servo-tsav tshuab rau kev txuag hluav taws xob, neeg siv-phooj ywg zoo hmi (Tib neeg lub tshuab interface) rau kev ua haujlwm yooj yim, thiab hloov pauv sai Lub peev xwm los txhim kho cov khoom lag luam. Cov tiav lawm pallets yog dav siv hauv kev logistics, chaw ua yeeb yam, ua zaub mov, thiab kev tsim khoom lag luam, Kev muab cov txiaj ntsig zoo xws li kev tsim kho khaub ncaws hnav, corrosion kuj, thiab cuam tshuam tsis kam, ua rau lawv txoj kev hloov kho hauv eco-phooj ywg rau Tsoos ntoo tsoos ntoo.

Cov lus qhia

muaj pes tsawg tus lej	Khoom HDPE ...	PWM ZAJ ROJ KHEEJ (PEB KHEEJ KHEEJ)
muaj pes tsawg tus lej	Khoom HDPE ...	TSHUAB qauv: KGS135A
Cov lus qhia
1	Max Ntim Peev Xwm	2000 L
2	Tso Tawm (Lub voj voog qhuav)	300 PC / hr
3	Tshuab Dimension (L × W × h)	8.5 m × 3.8 m 6 m
4	Tshuab qhov hnyav	43 t
Clamping chav tsev
1	Clamping yuam	1800 KN
2	Pwm Platen Loj (W × h)	1400 hli X 1800 hli
3	Daim phiaj qhib Toke	800 mm - 2200 hli
4	Platen Tsiv stroke	1000 mm
5	Max Pwm Loj (W × h)	1400 hli × 1900 hli
6	Pwm Thickness	830 hli - 1150 hli
Hwjchim
1	Servooil twj tso kua mis muaj zog	25 kw
2	SERVO TWJ TSO KUA MIS	200 l / min
3	Hau pliaj	0.8 MPa
4	Kev Siv Cua Cua	2 m² / mi
5	Cua txias dej siab	0.3 MPa
6	Kev Siv Dej	120 l / min
7	Qhov nruab nrab hluav taws xob siv	110 kw -150 kw
Extruder Chav
1	Ntsia Hlau taub	135 hli
2	Ntsia hlau L / d piv	30 l / d
3	Melting capacit rau HDPE	400 KG / hr-hr -500 kg / hr
4	Cov naj npawb ntawm thaj chaw ua cua sov	5 Cheeb Tsam
5	NTSIA HLUB cua kub	32.5 KW
6	Ntsia hlau fanpower	0.6 kw
7	Extruder Lub Zog Muaj Zog	132 (160) kw
Tuag Lub Taub Hau
1	Cov naj npawb ntawm cov hluav taws xob	6 cheeb tsam
2	Cua sov fais fab	39 kw
3	Maxdie-tus pin inch	850 hli
4	Accumulator muaj peev xwm	30 (45) l
5	(PE) Tsoos Kev Nyuaj Siab	22 (33) Kg

Nta thiab Qhov Zoo

Hollow cov qauv tsim los ntawm tshuab moulding tsim muaj peev xwm tshwj xeeb thauj khoom muaj peev xwm xws li cov saw hlau hnyav thiab kev lag luam hnyav.
Kev hloov kho kom haum rau kev sib txawv ntau thiab tsawg, cov duab ("ceg tawv)
100% siv rov qab cov ntaub ntawv raw, xoom ua kom tsis muaj teeb meem thaum lub sijhawm tsim khoom, thiab ib lub neej ntau dua li kev noj thiab haus cov hneev taw.

Chaw thov

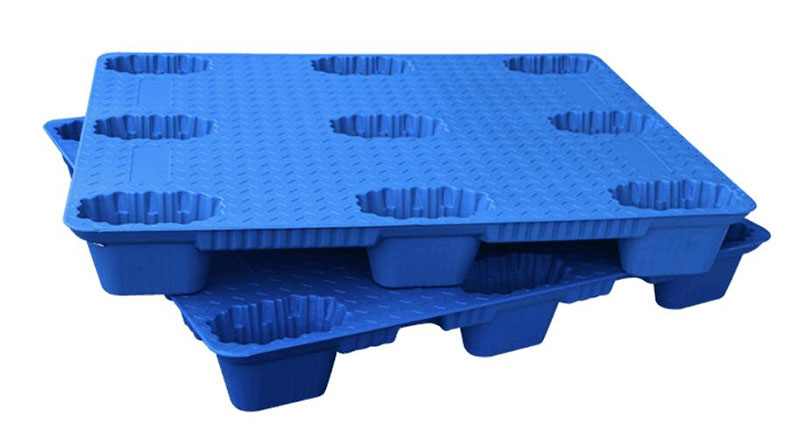

Kev muaj khoom Pallets, cov khoom ntim loj

Cov FAQ

1. Ntau npaum li cas ntawm kev sib sau ua qauv tshuab moulding tshuab?

Vim yog cov khoom sib txawv, lub tshuab tuaj yeem muaj lub cev hlau / hauv qab tshuab system / Foob ntaus ntawv, thiab lwm yam. Thov qhia koj cov khoom lag luam rau koj, ces peb muab cov tshuaj rau kev siv.

2. Kuv tuaj yeem xaiv tus qauv zoo li cas?

Rau li niaj hnub fwj / barrels thiab lwm yam pob khoom, tsuas yog paub meej tias lub max ntim ntawm lub tshuab. Rau lwm cov khoom lag luam tshwj xeeb, xav tau kev txiav txim siab platen / extrusion / Hwj chim thiab lwm yam, thov hu rau peb kom tau daws cov tshuaj zoo.

3. Piv nrog lwm hom, vim li cas kuv xaiv Kinglle tshuab moulding tshuab?

Kinged koom rau hauv tshuab moulding Txij xyoo 2008, peb kev paub tuaj yeem txhawb nqa tshiab Cov neeg yuav khoom kom tau txais cov kab ntau lawm thiab ua tiav kev nqis peev rov qab los. Nyob rau 20 xyoo dhau los, peb tau tsim dav dav thiab tsim qauv ywj pheej, ua tiav ruaj khov thiab kev tsim khoom zoo.

4. Koj tau lees paub ntawm lub tshuab zoo?

Peb yuav siv cov tshuab ntsuas siab ua ntej xa khoom kom paub tseeb tias cov kev tsim khoom yog ruaj khov. Thiab muab 1-xyoos lav txij li lub tshuab tuaj txog koj lub Hoobkas. Yog tias xav tau, kuj tuaj yeem muab daim ntawv pov thawj SGS.

5. Koj puas muab kev cob qhia kev saib xyuas kev saib xyuas lossis kev ua txhaum kev txhaum?

Yog lawm, peb tsis tsuas yog muaj cov ntaub ntawv txij nkawm tab sis kuj muaj cov ntaub ntawv txuj ci / Cov yeeb yaj kiab los daws cov teeb meem.
Lub khoos kas TSHUAB muaj lub tswb ceeb toom, uas tuaj yeem pab tau nyob rau hauv Kev daws teeb meem teeb meem

6. Koj tau txais kev pab cuam tom qab twg?

Peb tuaj yeem xa cov kws ua choj rau koj lub hoobkas los pab koj nruab thiab tsheb ciav hlau, lub ntsiab Cheebtsam tuaj nrog lub sijhawm 1-2 xyoo lav, thiab qhov chaw tsis yooj yim tuaj yeem yog hloov dawb hauv ib xyoos.
