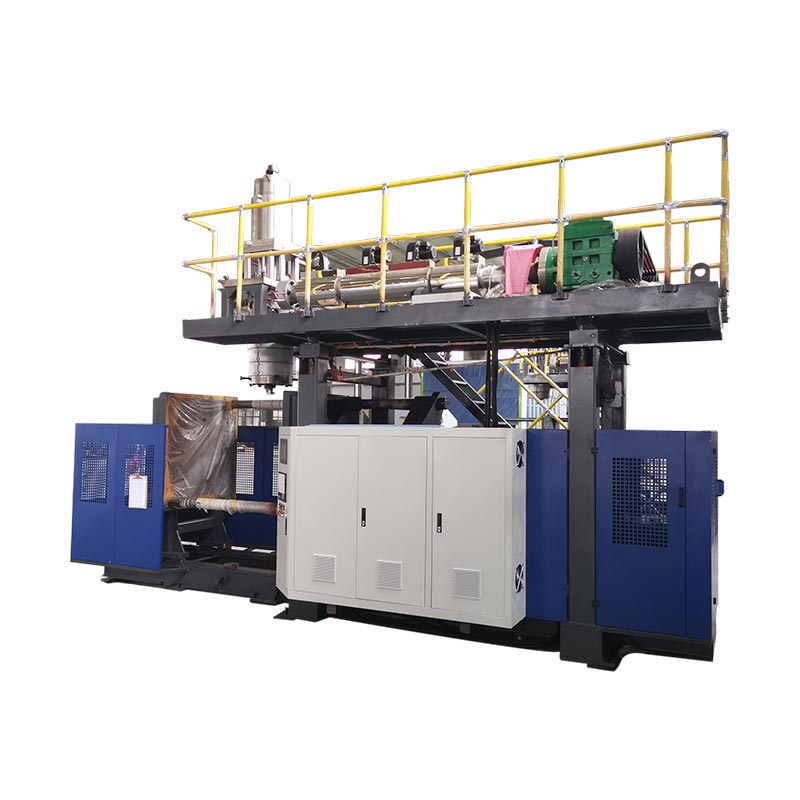

160L ntab tshuab moulding tshuab

Model:KGB110F

Txhawm rau txhawb nqa ntab kev lag luam, kgb110f 160L ntab tshuab moulding tshuab yog ntseeg los ntawm lub ntiaj teb tshuab moulding tshuab manufacturers. Rau yas tshuab moulding tshuab cov ntawv thov uas zoo li lub voos ntab ntab / soline ntab thiab ntab platform, nws ua kom muaj txiaj ntsig zoo nqi thiab ntev ntev. Tsis txhob qhaj tawm-tiv tauj peb los hloov koj qhov kev tsim khoom hnub no!

Ntim: 160LQhov hnyav: 24t

Xa lus nug

Product Description

Tus txheem kgb110f qauv, ib tug leadulator lub taub hau tshuab moulding tshuab, suav nrog Moog 100 thickness maub los, neeg hlau caj npab, thiab hauv qab tshuab System, txhim kho kev tsim khoom thiab cov khoom lag luam zoo. Qhov no 160l ntab tshuab moulding tshuab yog Qhov zoo tagnrho rau ntau yam kev siv, suav nrog cov nruas lim tshuab tshuab moulding tshuab cov kev daws teeb meem, yas extrusion tshuab moulding tshuab ua cov txheej txheem, ntab tshuab Cov Kev Siv Moulding Tshuab Cov Kev Siv, thiab cov khoom ntim ntau lawm Cov Khaub Ncaws, Cov Khoom Ua Si Tsheb, Cov Khoom Ua Si Tshuab, Cov Khoom Siv Lub Tshuab Moulding, Auto Qhov Chaw, Tsheb Teeb Meem, Tshuaj Rooj Tog, Floating Buoys, Cov Rooj Zaum, Thiab Cov Ntxhuav.

Cov lus qhia

muaj pes tsawg tus lej	Cov khoom siv PE, PP, ABS ...	Pwm kaw cov roj kheej kheej (tib tog kheej kheej)
muaj pes tsawg tus lej	Cov khoom siv PE, PP, ABS ...	TSHUAB qauv: kgb110f
Cov lus qhia
1	Max Ntim Peev Xwm	160 l
2	Tso Tawm (Lub voj voog qhuav)	300 PC / hr
3	Tshuab Dimension (L × W × h)	6.6 M X 4.2 M × 5.2 m
4	Tshuab qhov hnyav	24T
Clamping chav tsev
1	Clamping yuam	760 Kn
2	Pwm Platen Loj (W × h)	1100 hli × 1900 hli
3	Daim phiaj qhib Toke	600 hli -1600 hli
4	Platen Tsiv stroke	600 hli
5	Max Pwm Loj (W × h)	600 hli × 1900 hli
6	Pwm Thickness	610 hli - 750 hli
Hwjchim
1	Servooil twj tso kua mis muaj zog	25 kw
2	SERVO TWJ TSO KUA MIS	200 l / min
3	Hau pliaj	0.8 MPa
4	Kev Siv Cua Cua	1.8 m² / mi
5	Cua txias dej siab	0.3 MPa
6	Kev Siv Dej	120 l / min
7	Qhov nruab nrab hluav taws xob siv	70 kw - 80 kw
Extruder Chav
1	Ntsia Hlau taub	110 hli
2	Ntsia hlau L / d piv	25 L / D
3	Melting capacit rau HDPE	180 kg / hr -220 kg / hr
4	Cov naj npawb ntawm thaj chaw ua cua sov	4 cheeb tsam
5	NTSIA HLUB cua kub	24 Kw
6	Ntsia hlau fanpower	0.6 kw
7	Extruder Lub Zog Muaj Zog	75 (90) kw
Tuag Lub Taub Hau
1	Cov naj npawb ntawm cov hluav taws xob	5 Cheeb Tsam
2	Cua sov fais fab	38.5 KW
3	Maxdie-tus pin inch	450 hli
4	Accumulator muaj peev xwm	20 l
5	(PE) Tsoos Kev Nyuaj Siab	15 kg

Nta thiab Qhov Zoo

Kev khawb qhov tob rau hauv cov thev naus laus zis tuaj yeem muab cov txheej txheem siab-lub zog khoom siv rau cov neeg siv khoom uas tau them tus nqi tsim nyog; Tseem tuaj yeem txua ob-txheej lossis cov txheej txheem ntau txheej txheem sib xyaw nrog cov khoom siv tes ua tau zoo
Txhawb cov haujlwm tseem ceeb ntawm 110f tshuab moulding tshuab nrog lub zog ua kom ruaj thiab txhim khu kev qha hydraulic fais fab system. Nrov must thiab ruaj khov hloov mus rau agile thiab muaj zog ua haujlwm thiab muaj txiaj ntsig zoo ntawm cov khoom siv ntev thiab muaj txiaj ntsig ib txwm muaj cov khoom lag luam zoo thiab ua rau muaj cov khoom lag luam zoo.
