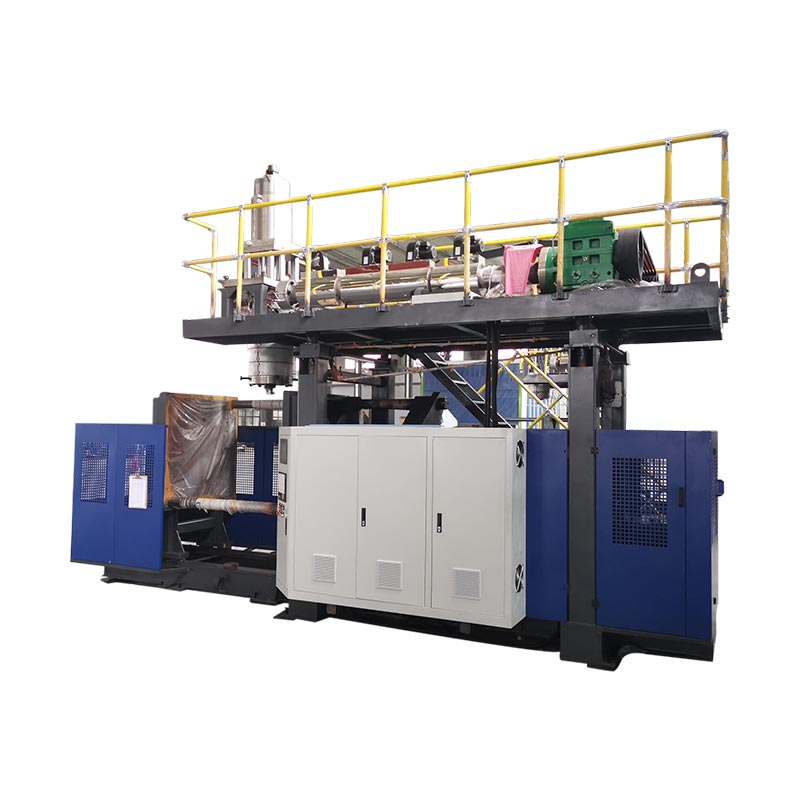

ABS Tshwj Xeeb Tshuab Moulding Tshuab

Model:KGB110A-ABS

Hloov koj qhov chaw pib nrog KGB110a-ABS, TXIAV, REDEFEES EXPRESS TSHUAB MOULDING TSHUAB MOILDING! Zoo meej rau abs lwj tshuab moulding tshuab xav tau zoo li lwj thiab dashboards, nws pab koj coj lub lag luam lag luam nrog kev ua lag luam zoo tshaj.

Ntim: /Qhov hnyav: 25T

Xa lus nug

Product Description Specification Application

Kgb110a-ABS yog tus qauv tshwj xeeb tshuab moulding tshuab rau cov khoom pib Chaw tsim tshuaj paus. Lub ab abs tshwj xeeb tshuab moulding tshuab nrog siab dua siab extrusion thiab tshuab rau Tsim cov saum npoo zoo nkauj kom txuag tau cov txheej txheem tom qab. Thiab tshuab customized Platen kom haum kev lag luam cov khoom lag luam txiv hmab txiv ntoo, txuag cov nqi kev lag luam machinery.

Nta thiab Qhov Zoo

Kev khawb qhov tob rau hauv cov thev naus laus zis tuaj yeem muab cov txheej txheem siab-lub zog khoom siv rau cov neeg siv khoom uas tau them tus nqi tsim nyog; Tseem tuaj yeem txua ob-txheej lossis cov txheej txheem ntau txheej txheem sib xyaw nrog cov khoom siv tes ua tau zoo
Txhawb cov haujlwm tseem ceeb ntawm 110A-ABS Tshuab Moulding tshuab nrog lub zog loj thiab txhim khu kev qha hydraulic fais fab system. Nrov must thiab ruaj khov hloov mus rau agile thiab muaj zog ua haujlwm thiab muaj txiaj ntsig zoo ntawm cov khoom siv ntev thiab muaj txiaj ntsig ib txwm muaj cov khoom lag luam zoo thiab ua rau muaj cov khoom lag luam zoo.

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB110A-ABS
Specifications
1	Max container capacity	/
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M x 5.2 M
4	Machine weight	25 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1100 MM x1600 MM
3	Platen openingstroke	600 MM -1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	1000 MM×1400 MM
6	Mold thickness	610 MM -750 MM
Power
1	Servooil pump motor power	30 KW + 22 KW
2	Servo pump displacement	200 L/MIN +138 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	28 L/D
3	Melting capacit for HDPE	180 Kg/hr -220 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	90 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.5 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	12(20) L
5	(PE)Accumulator weight	9(15) KG
