Yas Round Cov Lus Tshuab Moulding Tshuab

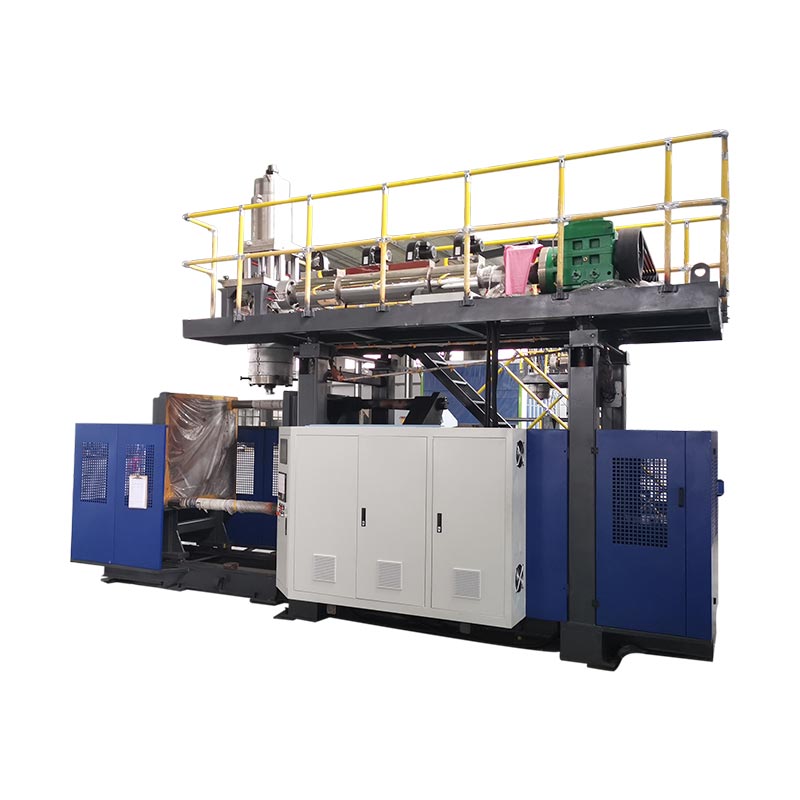

Model:KGS120Y

Kings120y yog lub rooj hloov roj hmab ruaj khov tshuab moulding tshuab txiav rau cov rooj sib xyaw tshuab tshuab moulding tshuab thov. Tag nrho cov lus yas lossis yas pannel extrusion tshuab moulding tshuab yuav tsum tau, nws muaj customized tsim thiab zoo dua ntug.

Ntim: 2000LQhov hnyav: 42t

Xa lus nug

Product Description Specification Application Workshop

KGS 120Y 183 Yas Hloov Cov Lus Tshuab Moulding Tshuab yog tsim rau cov vaj huam sib luag HOM KHOOM, Xws Li Lub Rooj / Ware Tsev thiab lwm yam Platized Platen Tshuab Moulding Tshuab tuaj yeem ua tau zoo tag nrho cov kev loj loj tsim kev tsim khoom, Nrog kev nrawm nrawm los txuag tus nqi hauv tsev.
Suav nrog Moog 100 thickness maub los, neeg hlau caj npab, thiab hauv qab tshuab System, txhim kho kev tsim khoom thiab cov khoom lag luam zoo.

Nta thiab Qhov Zoo

Siv rau kev tsim khoom lag luam hauv ntau yam kev lag luam. Seb nws loj muaj peev xwm loj corrosion-resistant cov thawv hauv kev lag luam tshuaj lom neeg nrog cov khoom lag luam tsis zoo rau cov khoom noj txhua hnub, nws tuaj yeem raug tswj hwm kom tau ntsib ntau yam kev lag luam.
Cov txheej txheem pub rau cov neeg noj khoom haus ua cov thev naus laus zis thiab yog ua kom zoo raws cov yam ntxwv muaj peev xwm ntawm lub 120 hli tshuab moulding tshuab. Qhov tseeb tswj hwm tus nqi txaus thiab faib cov khoom lag luam raw ua kom ntseeg tau lub zog ntawm cov khoom lag luam, thiab tshem tawm qhov tsis xws luag tshwm sim los ntawm kev pub mis tsis sib xws.

Specifications

serial number	Material HDPE…	Mold closing oil cylinder(three cylinders)
serial number	Material HDPE…	Machine model:KGS120Z
Specifications
1	Max container capacity	2000 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	8.3 M ×3.4 M × 6.8 M
4	Machine weight	42 T
Clamping Unit
1	Clamping force	1800 KN
2	Mold platen size(W×H)	1600 MM×1900 MM
3	Platen openingstroke	600 MM-1800 MM
4	Platen moving stroke	700 MM
5	Max mold size(W×H)	1650 MM×19000 MM
6	Mold thickness	830MM - 1030 MM
Power
1	Servooil pump motor power	25 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	2 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW -130 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	30 L/D
3	Melting capacit for HDPE	350 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	32.5 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	132 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Maxdie-pin diameter	800(950) MM
4	Accumulator capacity	45(60) L
5	(PE)Accumulator weight	33(45) KG
