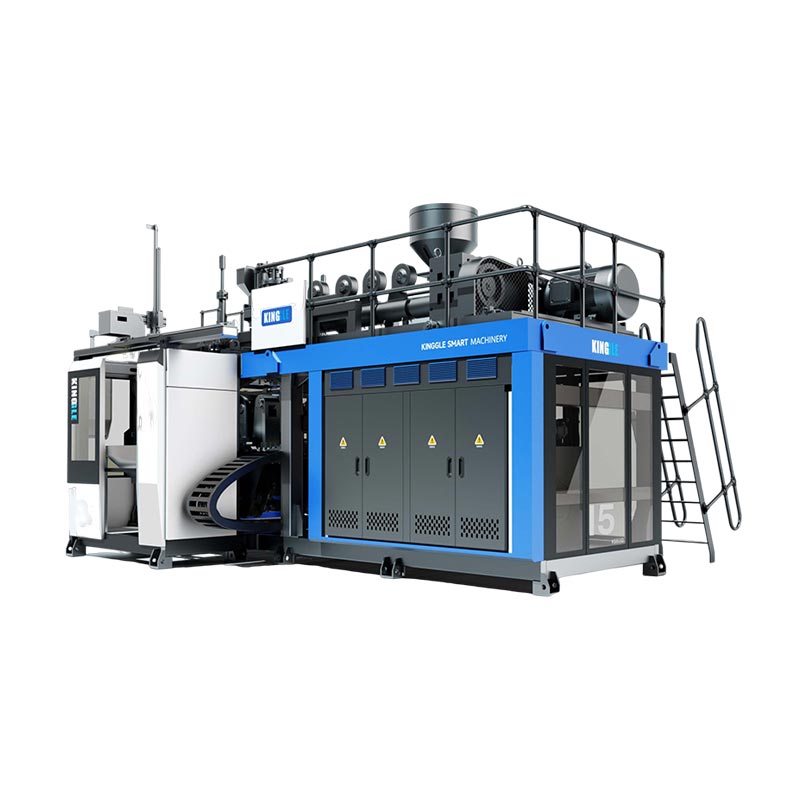

15L tib chaw nres tsheb tshuab moulding tshuab

Model:KGB15L

Tsim los rau cov muaj ntim siab ntau lawm, cov chaw nres tsheb tav toj tas mus tas li tshuab moulding tshuab zoo li ntawm cov thawv ntim mus txog 15l. Nws qhov kev tsim qauv hloov tau yooj yim rau kev hloov pauv hloov ntawm ib qho thiab ntau lub taub hau kev teeb tsa, ua kom muaj peev xwm ua tau zoo rau ntau lub thawv kom tsawg. Koj tuaj yeem yuav 15l tib chaw nres tsheb tshuab moulding tshuab los ntawm peb lub hoobkas.

Ntim: 15lQhov hnyav: 7.5t

Xa lus nug

Product Description Specification Application

Los ntawm zawv plaub hau fwj rau JerryCan lub raj mis tshuab tshuab cov ntawv thov, no 15L tib chaw nres tsheb tshuab moulding zoo thiab ua tau zoo ib yam. Txhawb koj lub peev xwm ntau lawm nrog cov haib thiab ntau yam tshuab.

Nta thiab Qhov Zoo

Lub tshuab ua si tau txais cov txheej txheem pub mis rau kev siv rau ntawm cov khoom siv roj hmab, kom muaj txiaj ntsig zoo ntawm cov khoom lag luam yeeb yaj kiab, ua kom muaj zog ntawm cov khoom lag luam, thiab ua kom muaj cov khoom siv zoo ntawm 15l ntim.
Kev vam khom rau cov thev naus laus zis hluav taws xob ua kom zoo nkauj, xws li yog cov khoom siv hluav taws xob yooj yim thiab kev siv zog, ua tiav phau ntawv kho cov haujlwm. Cov neeg ua haujlwm tuaj yeem yooj yim ua kom meej calibration raws li kev ua haujlwm tiag tiag, kom ntseeg tau tias muaj ntau yam kev xav tau kev lag luam. Nws tuaj yeem hloov tau 15L cov qauv nrog cov qauv sib txawv xws li cov khoom siv raw tshuaj, khoom noj thiab dej haus, ntxuav lwm hnub thiab lwm cov khoom.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15L
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450 PC/HR
3	Machine Dimension(L×W×H)	4.5M x2.2 M x2.8 M
4	Machine weight	7.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×500 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.8 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	70 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	75 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	100 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	30 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
