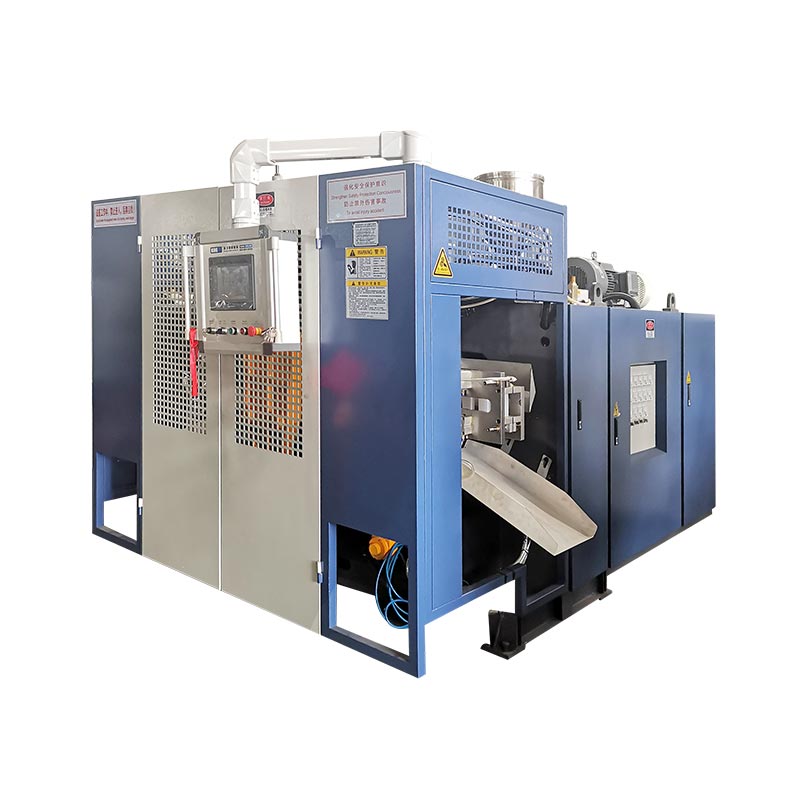

2L tib chaw nres tsheb tshuab moulding tshuab

Model:KGB2L

Qhov 2L tib chaw nres tsheb tshuab moulding tshuab, haum rau max 2L lub thawv ntau lawm, yog ntau yam. Nws muaj txoj kev xaiv hloov mus rau 2, 3, lossis 4 lub taub hau kev nplua ntau, cia nws ua kom haum rau 100ml-1 liter fwj siv me me tshuab moulding tshuab.

Ntim: 2LQhov hnyav: 2.5t

Xa lus nug

Product Description Specification Application

Qhov kev hloov kho no nce ntxiv niaj hnub tsim tawm tshiab txhua hnub, ua kom nws muaj kev daws teeb meem zoo rau cov tsim khoom lag luam uas saib xyuas cov khoom lag luam zoo. Siv cov 2l ib qho chaw nres tsheb tshuab moulding tshuab los tsim cov ntaub ntxhua rau zawv plaub hau, tshuaj pleev ib ce, thiab ntxuav tais diav ua kua. Rau qhov ntau tagnrho, xav txog peb 5L lossis 15L lub raj mis tshuab moulding tshuab nrog ntau tus tuag lub taub hau xaiv.

Nta thiab Qhov Zoo

Ib qho chaw nres tsheb txhais lus sib txuas lus sib txuas ua ke ua ke, nruab nrog lub chaw ua kom zoo nkauj throttle valve kom ntseeg tau cov khoom siv du thiab ua tau zoo.
● Cov Khaub Ncaws Tuag yog tsim nrog cov chaw pub mis hauv nruab nrab, ua kom cov khoom faib tawm rau cov khoom kom zoo rau cov khoom zoo.
● Kev tsim kho hluav taws xob hluav taws xob hluav taws xob hluav taws xob tau siv los ntawm Mitsubishi PlC, tso cai rau cov neeg ua haujlwm los ua kom ceev thiab kho tau yooj yim.
● Nrog cov khoom lag luam siab tshaj plaws ntim tau ntawm 2L, nws sawv ua qhov kev xaiv sab saum toj rau cov ntim khoom lag luam ntau lawm los ntawm 50ml mus 2L.
● Cov yam ntxwv ntawm cov khoom lag luam xws li cov txheej txheem ib leeg
● Cov txheej txheem hydraulic nta tau tsim qauv sib txawv, xa cov lus teb muaj txiaj ntsig zoo thiab nrawm nrawm, cuam tshuam ntau dua cov kev ua tau zoo tag nrho.

Specifications

serial number	Material PE、PP、PVC、PA...	Mold-moving series
serial number	Material PE、PP、PVC、PA...	Machine model:KGB2L
Specifications
1	Max container capacity	2L
2	Output(dry Cycle)	600 PC/HR
3	Machine Dimension(L×W×H)	3.1 M x 1.7 M x 2.5 M
4	Machine weight	2.5T
Clamping Unit
1	Clamping force	40KN
2	Mold platen size(W×H)	380 MM x430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM x 380MM
6	Mold thickness	160 MM - 300MM
Power
1	Servooil pump motor power	11 KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	50 L/min
7	Average energy consumption	12-18 KW
Extruder unit
1	Screw diameter	50 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	30 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	7.5 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	11KW
Die head
1	Number of heating sections	3 * 5 ZONE
2	Heating power	3.2 KW
3	1MTMaxdie-pin diameter	90 MM
4	2Center distance of double die head	130 MM
5	2MTMax die-pindiameter	60 MM
