15 pob chaw nres tsheb ob chav moulding tshuab

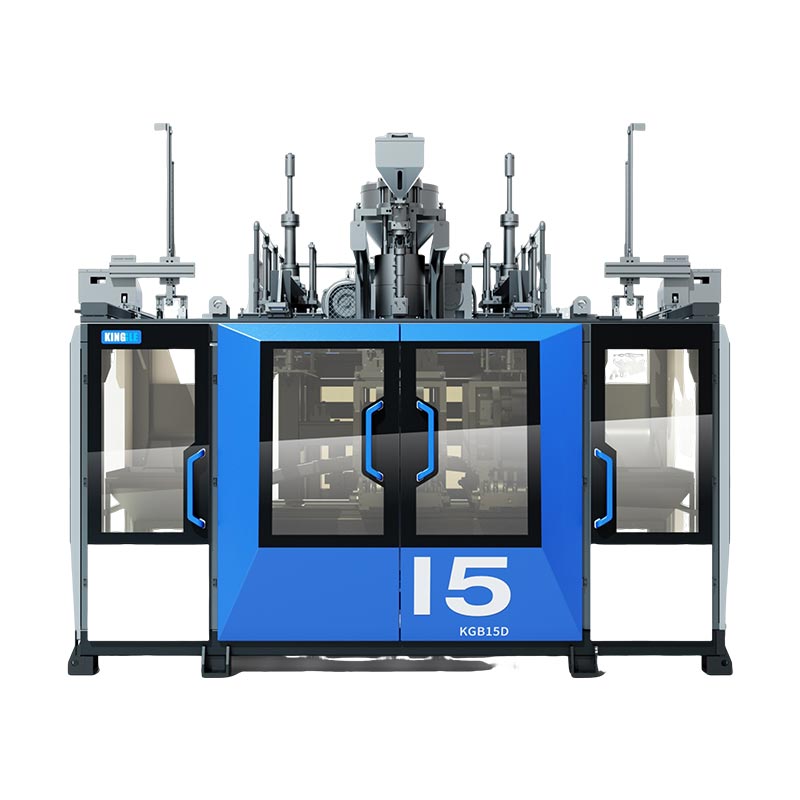

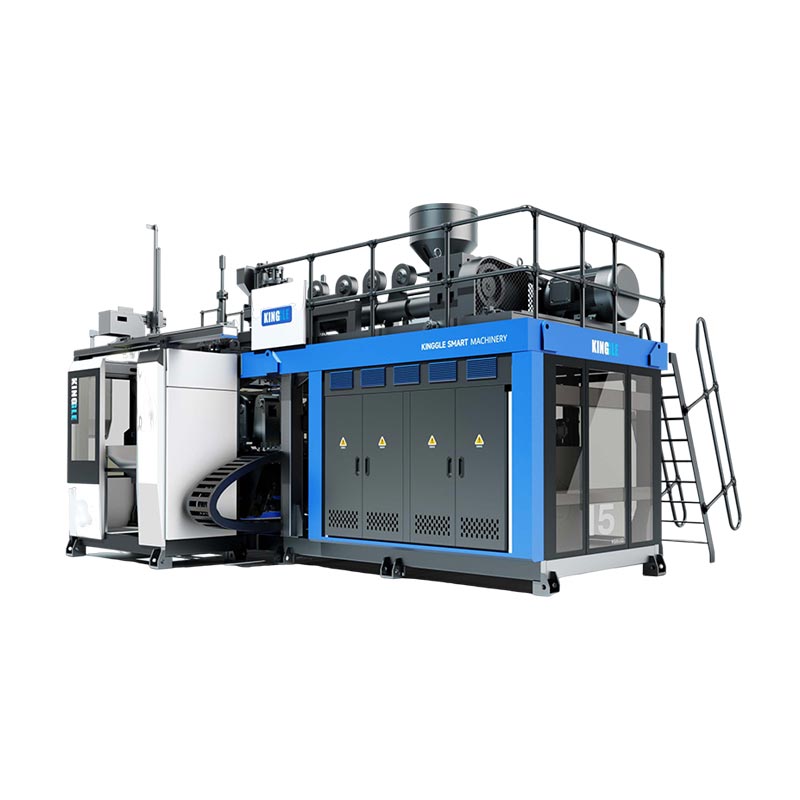

Model:KGB15D

Maximize koj kev tsim khoom nrog peb cov chaw nres tsheb sib tw txuas ntxiv ua ntu zus Qhov kev ua tau zoo 15l ob chav moulding tshuab muaj cov teeb tsa kev hloov kho, nrog rau 2 lub taub hau ntau lub taub hau.

Ntim: 15lQhov hnyav: 12.5t

Xa lus nug

Product Description Specification Application

Los ntawm cov ntim me me ntim rau cov thawv muaj 15l loj, suav nrog cov tshuab yas moulding tshuab ua kom muaj kev tsim khoom siv tau zoo thiab zoo ib yam. Qhov zoo tagnrho rau ntau cov ntawv thov, suav nrog cov tshuaj lom txhua hnub tshuab, thiab tshuaj ntxhua khaub ncaws, nws ua kom zoo nkauj, nws ua kom koj rov qab los ntawm kev nqis peev.

Nta thiab Qhov Zoo

Cov chaw nres tsheb ua haujlwm ob chav haujlwm, synchronized kev nce qib ntawm cov txheej txheem ntau lawm, yuav tsum tau ua ob npaug rau cov chaw nres tsheb ib zaug, thiab ua tau zoo tau ntsib cov kev xav tau ntawm cov kev xav tau loj.
Nruab nrog High-precision pwm hloov ntaus ntawv, ntas ceev hloov, nrawm dua pwm, qhov tsis ncaj ncees, ua kom pom kev ruaj khov.
Mitsubishi plc lub ntsiab tswj, pre-teeb program rau kev kho kho kom haum, phau ntawv ceev rau cov neeg xav tau, thiab kev sib txuam yooj yim tib neeg tib neeg kev sib cuam tshuam.
Peb tuaj yeem tsim 15l ntim nrog ib-txheej, ob-txheej, thiab cov khoom siv pob ntseg, haum rau kev siv tshuaj lom neeg, thiab khoom noj.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15D
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450x2 PC/HR
3	Machine Dimension(L×W×H)	4.8M x2.9 M x2.8 M
4	Machine weight	12.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×550 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.1 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	110 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	120 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
