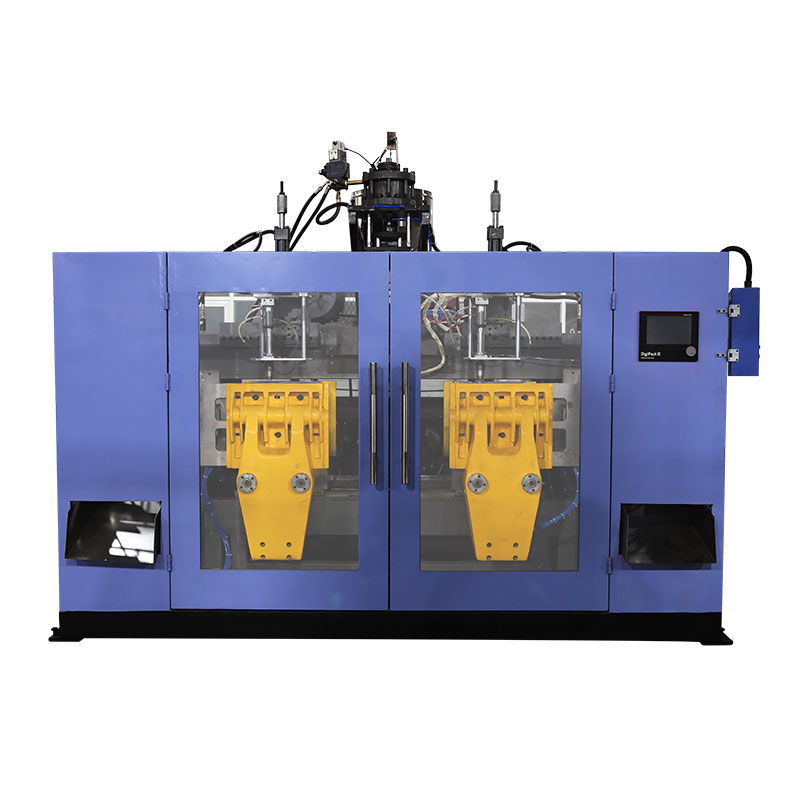

30L Jerry tuaj yeem ua tau ib lub chaw nres tsheb nkaus xwb tsis zoo tshuab moulding tshuab

Model:KGH30L

Superchachage Koj Cov Ntim Ntau Lawm Nrog Kgh30L 30L Jerry tuaj yeem Extrusion Tshuab Moulding Tshuab uas teeb tsa tus qauv tshiab rau 20liter tshuab! Nkhaus caj npab style clamping ntaus ntawv los muab ntau dua clamping zog, zoo meej rau 18ring tshuab moulding tshuab xav tau zoo li 20L nruas kev lag luam nrog sab saum toj-tier zoo.

Ntim: 30LQhov hnyav: 22.5t

Xa lus nug

Product Description Specification Application

Superchachage Koj Cov Ntim Ntau Lawm Nrog Kgh30L, Qhov Kawg Ntawm 30L Jerry tuaj yeem ua rau lub tshuab moulding uas tau teeb tsa tus qauv tshiab rau 20l Nruas kev siv. Featuring ib tug nkhaus npab-style clamping ntaus ntawv, qhov no tshuab kom ua kom ntau txawm clamping quab yuam, xa cov xim flawless tau txhua sijhawm. Txig haum rau 18l txog 20L nruas thiab jerry poom, kgh30l ua ke ua ke ua ke siab nrog sab saum toj-tier zoo los pab koj tus thawj kev ua lag luam. Tsim los rau precision thiab durability, lub tshuab no yog qhov zoo tagnrho daws rau kev lag luam nrhiav kom txhawb nqa lawv cov peev txheej ntau lawm thiab tsim cov khoom lag luam ntim khoom.

Nta thiab Qhov Zoo

Maximize koj ntau lawm nrog peb ib-chaw nres tsheb nruam tshuab moulding tshuab, tsim rau ntim mus txog 30l. Nrog kev teeb tsa hloov tau (2, 3, lossis 4 lub taub hau ntau ntau, los ntawm cov thawv ntim ntau, los ntawm cov thawv yas thiab cov yas ua kom zoo thiab zoo ib yam.
Qhov zoo tshaj plaws rau cov ntawv thov nyiam zawv plaub hau, ntim cov tshuaj ntxhua khaub ncaws ntim, thiab tshuaj pleev ib ce ntim khoom siv ceev thaum khaws cov theem zoo tshaj plaws. Nws cov vagatility thiab kev tsim qauv zoo pab txo kom txhob muaj cov khib nyiab thiab tso zis ntxiv, ua kom koj rov qab los ntawm kev nqis peev.

Specifications

serial number	Material PE、PP、PVC、PA...	High speed movement mode(curved arm)
serial number	Material PE、PP、PVC、PA...	Machine model:KGH30L
Specifications
1	Max container capacity	30 L
2	Output(dry Cycle)	450 PC/HR
3	Machine Dimension(L×W×H)	4.8 M x 2.1 M x 3.5 M
4	Machine weight	22.5T
Clamping Unit
1	Clamping force	300 KN
2	Mold platen size(W×H)	630 MM x 680 MM
3	Platen openingstroke	450 MM -1000 MM
4	Platen moving stroke	750MM
5	Max mold size(W×H)	730 MM - 680 MM
6	Mold thickness	480 MM - 580 MM
Power
1	Servooil pump motor power	22 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	180 L/min
7	Average energy consumption	70 KW -80 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	180 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.9 KW
7	Extruder motor power	75 KW
Die head
1	Number of heating sections	3 * 8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	280 MM
5	(PE)Accumulator weight	170 MM
