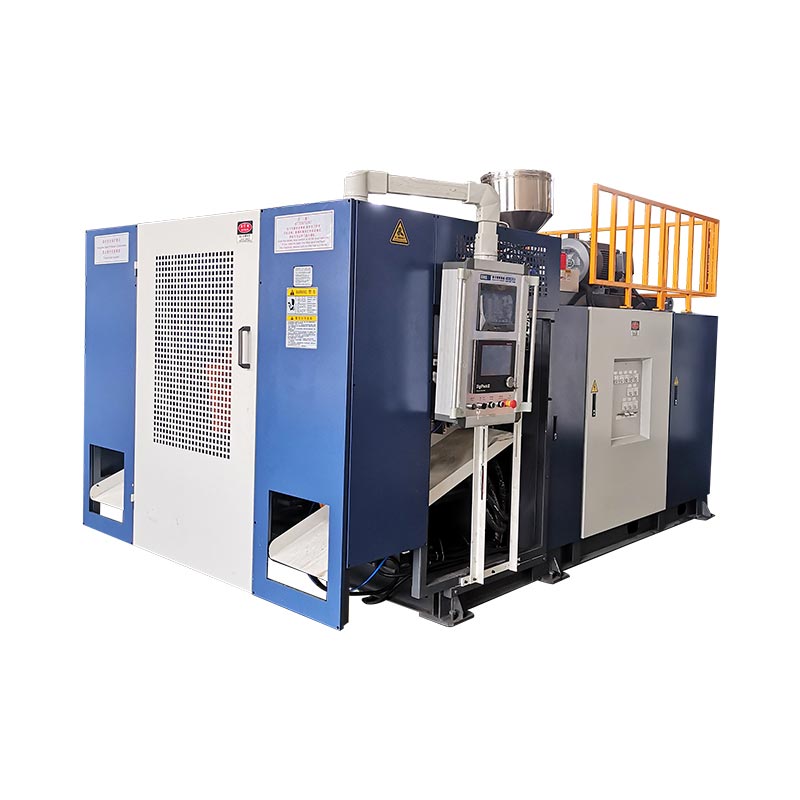

5L tib chaw nres tsheb tshuab moulding tshuab

Model:KGB5L

Tau paub qhov hloov tau thiab ua tau zoo ntawm peb ib-chaw nres tsheb txuas ntxiv tshuab moulding tshuab. Tsim los txog li 5l ntim, no 5L ib qho chaw nres tsheb tshuab moulding tshuab muab cov kev tsim kho tshiab, nrog rau kev xav tau tshwj xeeb.

Ntim: 5LQhov hnyav: 3.0t

Xa lus nug

Product Description Specification Application

Txawm koj xav tau ib qho kev ntsuas 5L ib qho chaw nres tsheb tshuab moulding tshuab teeb, lub tshuab no muab cov versatility hloov thiab ua haujlwm. Tiv tauj peb niaj hnub no los tshawb txog peb tus nqi sib tw thiab tshawb pom tias lub tshuab no tuaj yeem txhawb koj lub peev xwm ntau lawm.

Nta thiab Qhov Zoo

● Ib qho chaw nres tsheb txhais lus txhais tau tias cov tshuab, nruab nrog lub zog tsis zoo
● Cov Khaub Ncaws Tuag yog tsim nrog cov chaw pub mis hauv nruab nrab, ua kom cov khoom faib tawm rau cov khoom kom zoo rau cov khoom zoo.
● Kev tsim kho hluav taws xob hluav taws xob hluav taws xob hluav taws xob tau siv los ntawm Mitsubishi PlC, tso cai rau cov neeg ua haujlwm los ua kom ceev thiab kho tau yooj yim.
● Nrog cov khoom lag luam siab tshaj plaws ntim tau ntawm 5L, nws sawv ua qhov kev xaiv zoo tshaj plaws rau cov ntim khoom xws li 2l mus rau 5l.
● Cov yam ntxwv ntawm cov khoom lag luam xws li cov txheej txheem ib leeg
● Cov txheej txheem hydraulic nta tau tsim qauv sib txawv, xa cov lus teb muaj txiaj ntsig zoo thiab nrawm nrawm, cuam tshuam ntau dua cov kev ua tau zoo tag nrho.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB5L
Specification
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	3.0 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MM x 450 MM
3	Platen openingstroke	188 MM -538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM - 310 MM
Power
1	Servooil pump motor power	15KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	Maxdie-pin diameter	150 MM
4	2Center distance of double die head	150-180MM
5	2MTMax die-pindiameter	80MM
