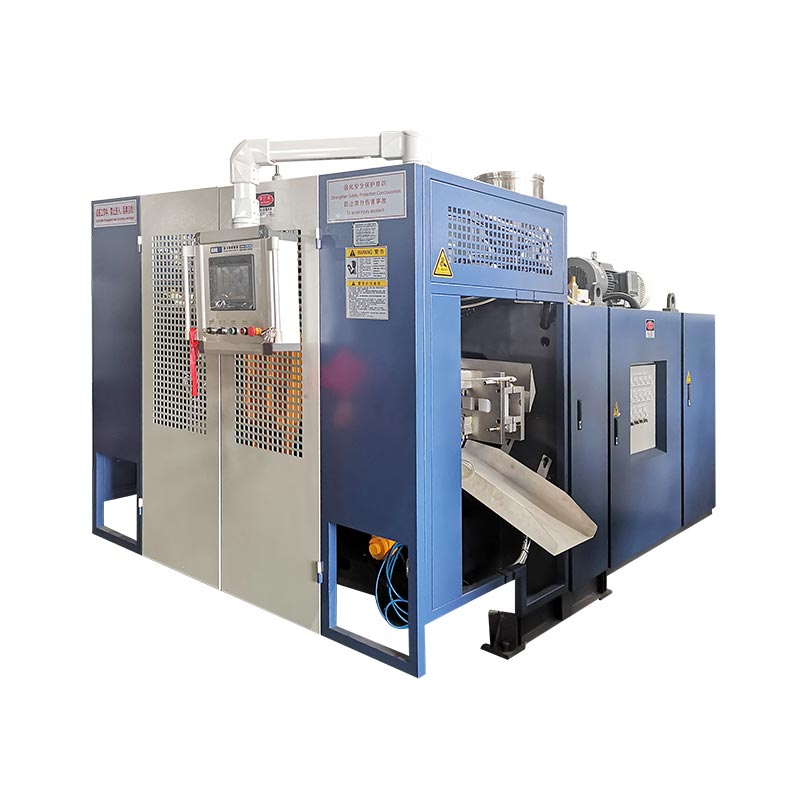

2L ob chav chaw Extrusion Tshuab Moulding Tshuab

Model:KGB2D

Ntsuas kom koj ntau lawm nrog peb qhov chaw siab 2l ob chav nres Extrusion tshuab moulding tshuab. Tsim los rau ntau tshaj 2l lub thawv, Qhov no ntau yam system seamlessly adapts los ua ntau yam khoom.

Ntim: 2LQhov hnyav: 4.5t

Xa lus nug

Product Description Specification Application

Yooj yim hloov mus rau 2, 3, lossis 4 lub taub hau ntau lub taub hau kom haum cov ntim me me, ua rau nws zoo rau cov kev siv muaj zog. Los ntawm zawv plaub hau fwj rau cov mis mis tshuab moulding tshuab xav tau, qhov no 2l ob chav dej extrusion tshuab moulding tshuab muab cov zis zoo ib txwm thiab tshwj xeeb tsis zoo thiab tshwj xeebal Tshawb peb cov tshuab raj hluav taws xob yas tshuab moulding tshuab nqe thiab qhib lub peev xwm rau cov txiaj ntsig nce ntxiv.

Nta thiab Qhov Zoo

Cov kev ntsuas hluav taws xob hluav taws xob tau raug suav tias yog "lub hlwb ntse" ntawm cov txheej txheem ua haujlwm thiab muaj peev xwm ua kom tiav cov lus qhia kom raug. Nyob rau tib lub sijhawm, cov txawj txawj txawj xav txog cov nyhuv ywj siab tso cai rau cov neeg ua haujlwm kom tau txais kev txhawb nqa sai thiab yooj yim dua thaum twg los tau, thiab ua tiav tib neeg kev sib koom tes ntawm tib neeg.
Kev cog lus kev cog lus thiab multifunctional tseem ceeb rau me-teev ntau lawm me me thiab nruab nrab ntim ntawm 2l thiab hauv qab no. Qhov tsim nyog lub cev tsim ua tiav qhov siab tshaj plaws hauv qhov chaw, nyob ib thaj chaw me me, yog yooj yim rau qhov chaw sib koom ua ke. Seb nws yog ib lub rooj sib tham me me lossis lub Hoobkas loj, nws tuaj yeem tswj tau yooj yim, muab cov kev daws teeb meem ntau lawm rau cov lag luam sib txawv ntawm qhov ntau thiab tsawg.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB2D
Specification
1	Max container capacity	2L
2	Output(dry Cycle)	600 x 2 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	4.5 T
Clamping Unit
1	Clamping force	40 KN
2	Mold platen size(W×H)	338 MM x 430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM×380 MM
6	Mold thickness	160 MM - 300 MM
Power
1	Servooil pump motor power	11KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	12 KW-18 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*5 ZONE
2	Heating power	3.2 KW
3	Maxdie-pin diameter	90 MM
4	2Center distance of double die head	130MM
5	2MTMax die-pindiameter	60MM
