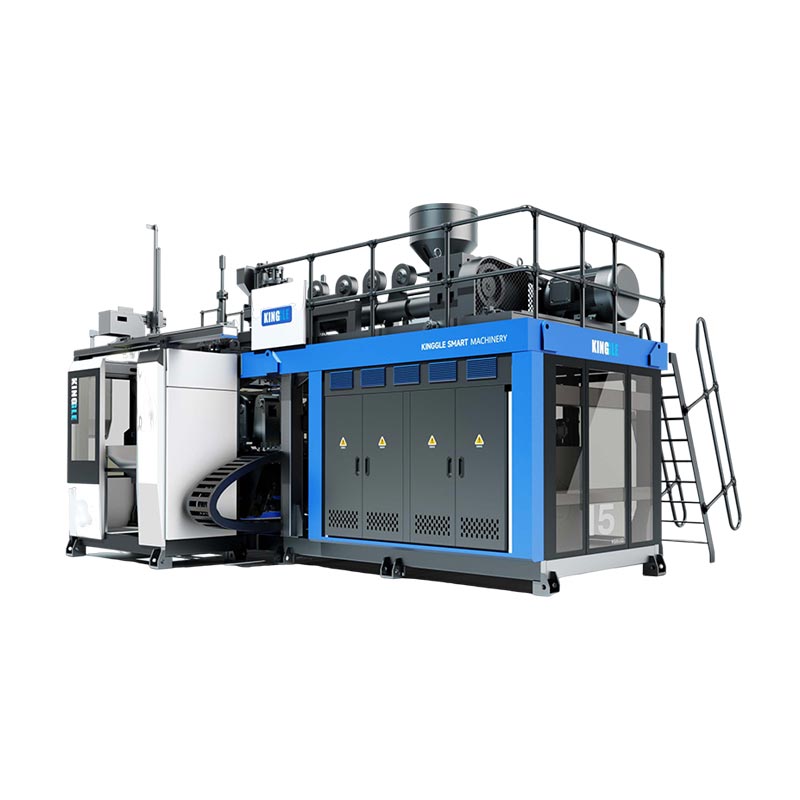

15 pob chaw nres tsheb ob chav moulding tshuab

Model:KGH15D

Revolutionize koj lub raj mis tsim nrog KGH15d, 15l ob chav nres tsheb tshuab moulding tshuab uas siv lub raj mis yas Extrusion tshuab moulding tshuab kev siv rau qhov siab tshiab! Zoo meej rau 10L tsis siv neeg tshuab moulding tshuab thov nyiam 10l thiab 15L fwj, nws pab koj ua lag luam nrog cov khoom lag luam zoo tshaj plaws.

Ntim: 15lQhov hnyav: 18.5t

Xa lus nug

Product Description

Revolutionize koj lub raj mis tsim nrog KGH15d, qhov chaw nres tsheb zoo 15L ob chav tshuab moulding tshuab uas nce lub raj mis yas Extrusion tshuab moulding rau qhov siab tshiab. Tsim los rau cov ntawv thov zoo li 10l thiab 15l fwj, KGH15d ua kom muaj txiaj ntsig zoo tsim cov khoom siv zoo nrog tshwj xeeb precision. Txawm hais tias rau kev tsim qauv loj lossis kev cai Cov ntawv thov, lub tshuab no lav cov khoom tawm saum toj-tier, pab koj nyob ua ntej hauv kev ua lag luam. Nrog cov nta siab thiab txhim khu kev qha, tus KGH15d muaj cov tshuaj zoo tshaj plaws rau kev lag luam nrhiav kom ua kom zoo thiab txhim kho khoom lag luam zoo.

Cov lus qhia

muaj pes tsawg tus lej	Cov khoom siv PE, PP, PVC, PA ...	Kev kub ceev txav hom (nkhaus caj npab)
muaj pes tsawg tus lej	Cov khoom siv PE, PP, PVC, PA ...	TSHUAB qauv: KGH15d
Cov lus qhia
1	Max Ntim Peev Xwm	15 l
2	Tso Tawm (Lub voj voog qhuav)	500 PC / HR X2 PC / hr
3	Tshuab Dimension (L × W × h)	5.6 M X 3.9 m × 3.5 m
4	Tshuab qhov hnyav	18.5t
Clamping chav tsev
1	Clamping yuam	200
2	Pwm Platen Loj (W × h)	580 hli X500 hli
3	Daim phiaj qhib Toke	320 hli -800 hli
4	Platen Tsiv stroke	720 hli
5	Max Pwm Loj (W × h)	700 hli -500 hli
6	Pwm Thickness	350 hli -450 hli
Hwjchim
1	Servooil twj tso kua mis muaj zog	22 kw
2	SERVO TWJ TSO KUA MIS	200 l / min
3	Hau pliaj	0.6 MPa
4	Kev Siv Cua Cua	1.5 mp / min
5	Cua txias dej siab	0.2 MPa - 0.3 MPa
6	Kev Siv Dej	140 l / min
7	Qhov nruab nrab hluav taws xob siv	40 kw -50 kw
Extruder Chav
1	Ntsia Hlau taub	90 hli
2	Ntsia hlau L / d piv	25 L / D
3	Melting capacit rau HDPE	180 kg / hr
4	Cov naj npawb ntawm thaj chaw ua cua sov	4 cheeb tsam
5	NTSIA HLUB cua kub	16 kw
6	Ntsia hlau fanpower	0.6 kw
7	Extruder Lub Zog Muaj Zog	55 kw
Tuag Lub Taub Hau
1	Cov naj npawb ntawm cov hluav taws xob	3 * 8 cheeb tsam
2	Cua sov fais fab	6.5 KW
3	Maxdie-tus pin inch	220 hli
4	Accumulator muaj peev xwm	240 hli -280 hli
5	(PE) Tsoos Kev Nyuaj Siab	170 hli

Nta thiab Qhov Zoo

Ntsuas koj cov khoom lag luam nrog peb cov chaw tsheb ciav hlau ob chav Nrog cov teeb tsa hloov tau (2, 3, lossis 4 lub taub ntim ntau, los ntawm cov thawv ntim ntau thiab cov yas yas, kom ua tau zoo thiab zoo ib yam.
Qhov zoo tshaj plaws rau cov ntawv thov nyiam zawv plaub hau, ntim cov tshuaj ntxhua khaub ncaws ntim, thiab tshuaj pleev ib ce ntim khoom siv ceev thaum khaws cov theem zoo tshaj plaws. Nws cov vagatility thiab kev tsim qauv zoo pab txo kom txhob muaj cov khib nyiab thiab tso zis ntxiv, ua kom koj rov qab los ntawm kev nqis peev.
